The test data should be considered as average values for the general families of plastics indicated. Critical application requirements may necessitate further specific testing. The plastic material failed in all cases except Polycarbonate Rotation - Internal thread stripped.

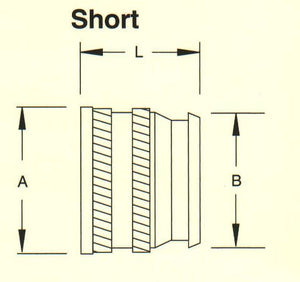

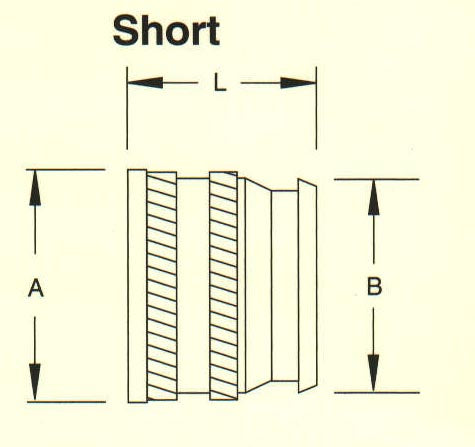

Specs (M3 Short)
Thread Size: M3 x 0.5
A - Diameter ±0.13: 5.56 mm
B - Diameter ±0.10: 5.16 mm
L - Length ±0.10: 3.80 mm

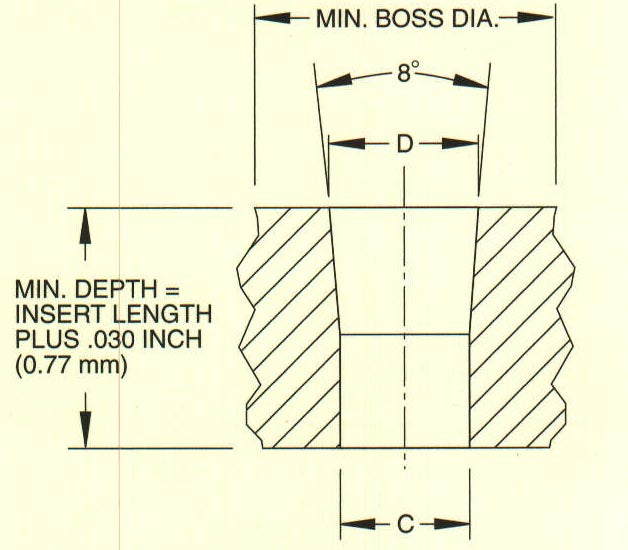

Hole size recommendations (M3 Short)
C - Diameter ±0.03: 5.05 mm
D - Diameter ±0.03: 5.31 mm
Minimum Boss Diameter: 11.13 mm
Test data (M3 Short)
ABS Rotation: 2.60 N·m
ABS Tensile: 979 N
Polycarbonate Rotation: 3.73 N·m
Polycarbonate Tensile: 1517 N
Structural Foam Rotation: 3.35 N·m
Structural Foam Tensile: 1048 N
Nylon 6/6 30% G.F. Rotation: 3.73 N·m
Nylon 6/6 30% G.F. Tensile: 1272 N
Specs (M4 Long)
Thread Size M4 x 0.7
A - Diameter ±0.13 | 6.35 mm
B - Diameter ±0.10 | 5.41 mm
L - Length ±0.10 | 7.90 mm
Hole size recommendations (M4 Long)
C - Diameter ±0.03 | 5.28 mm
D - Diameter ±0.03 | 5.94 mm
Minimum Boss Diameter 12.70mm
Test data (M4 Long)
ABS Rotation 5.08 N·m
ABS Tensile 2086 N
Polycarbonate Rotation 9.94 N·m
Polycarbonate Tensile 4048 N
Structural Foam Rotation 5.65 N·m
Structural Foam Tensile 2279 N
Nylon 6/6 30% G.F. Rotation 7.46 N·m
Nylon 6/6 30% G.F. Tensile 3928 N

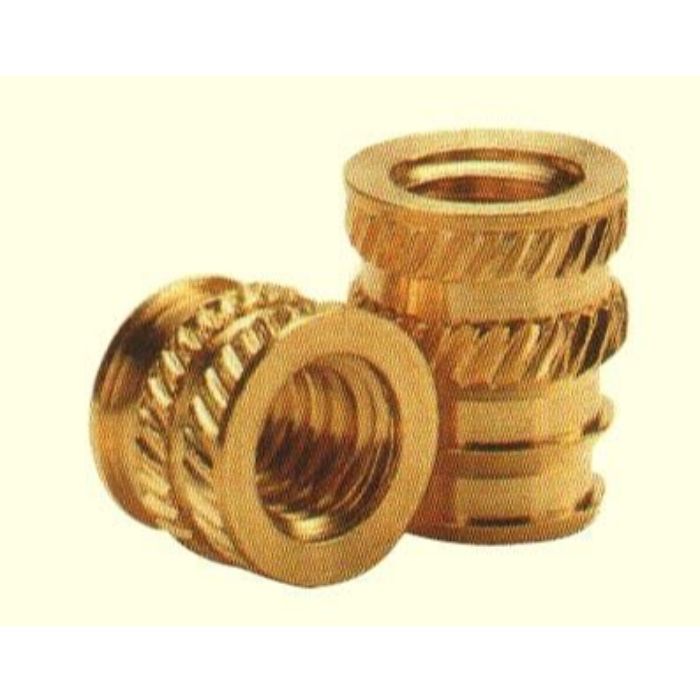

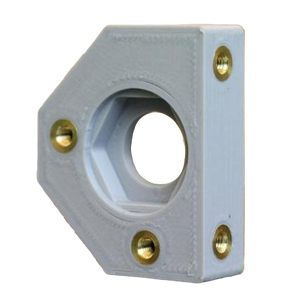

Dodge Ultraserts can be installed using ultrasonic equipment (moderate to high production) or thermal installation equipment (prototype work and low quantity production). Thermal equipment can be as simple as a soldering iron held by hand or mounted in an arbor or drill press. More refined equipment is available with adjustments and settings for precise uniform installations.
