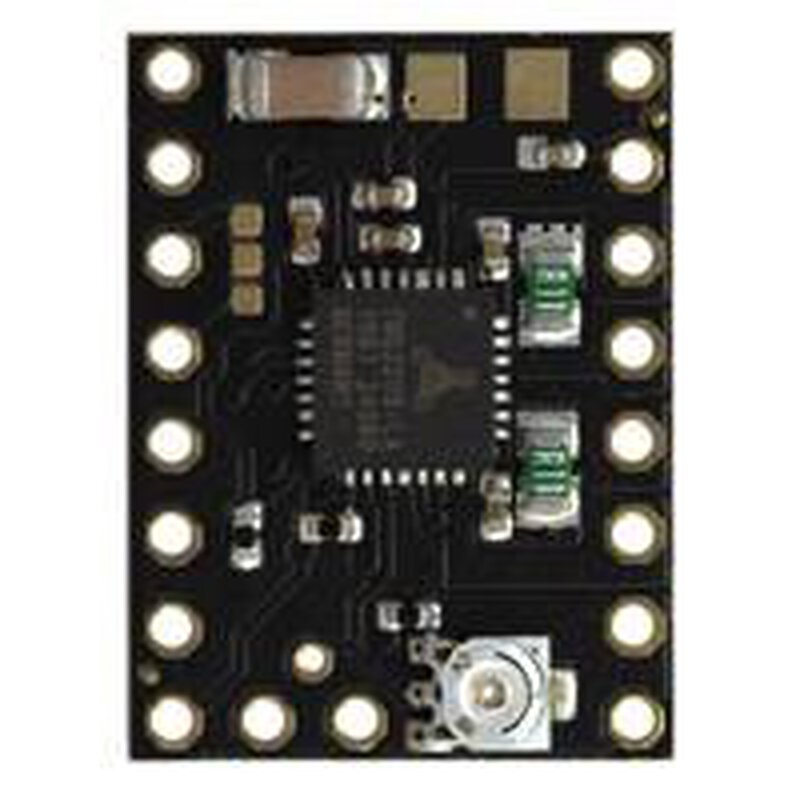

SilentStepStick - TMC2209 Stepper Motor Driver

Type

In stock, ready to ship.

We are now US distributors of a Stepper Motor Driver based on a Trinamic TMC2209 and created by Waterott Electronic. Much smoother control, up to 256x micro stepping, quieter, sometimes nearly silent stepper operation. Note that the TMC2209 can use a UART interface for configuration. Be sure to read the documentation!

Comes in both kit and pre-assembled forms. Kit forms comes with pin headers you must solder in place, pre-assembled comes with the pinheaders already installed.

Features

  • Stepper Motor Driver based on a Trinamic TMC2209
    - Hardware compatible with StepStick and Pololu A4988
    - Step/Dir interface with microstep interpolation (up to 256 microsteps)
    - stealthChop2 - for quiet operation and smooth motion
    - spreadCycle - highly dynamic motor control chopper
    - coolStep - current control for energy savings
    - stallGuard4 - sensorless motor load detection

Included:

- Stepper Driver Board
- Pin Headers

  • Hardware compatible with StepStick and Pololu A4988
  • Drive capability up to 1.7A (RMS) continuous coil current - 2.8A Peak
  • Step/Dir interface with microstep interpolation (up to 256 microsteps)
  • Configuration via CFG pins or UART interface
  • Motor voltage: 5.5...28V
  • Logic voltage: 3.3...5V
  • RSense: 0.11 Ohm
  • stealthChop2 - for quiet operation and smooth motion
  • spreadCycle - highly dynamic motor control chopper (enableable via UART, OTP, CFG Pin)
  • coolStep - current control for energy savings
  • stallGuard4 - sensorless motor load detection
