LDO Smart Orbiter v3.0



In stock, ready to ship.

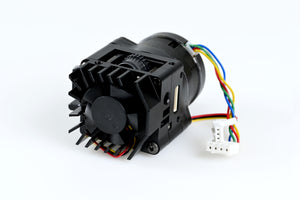

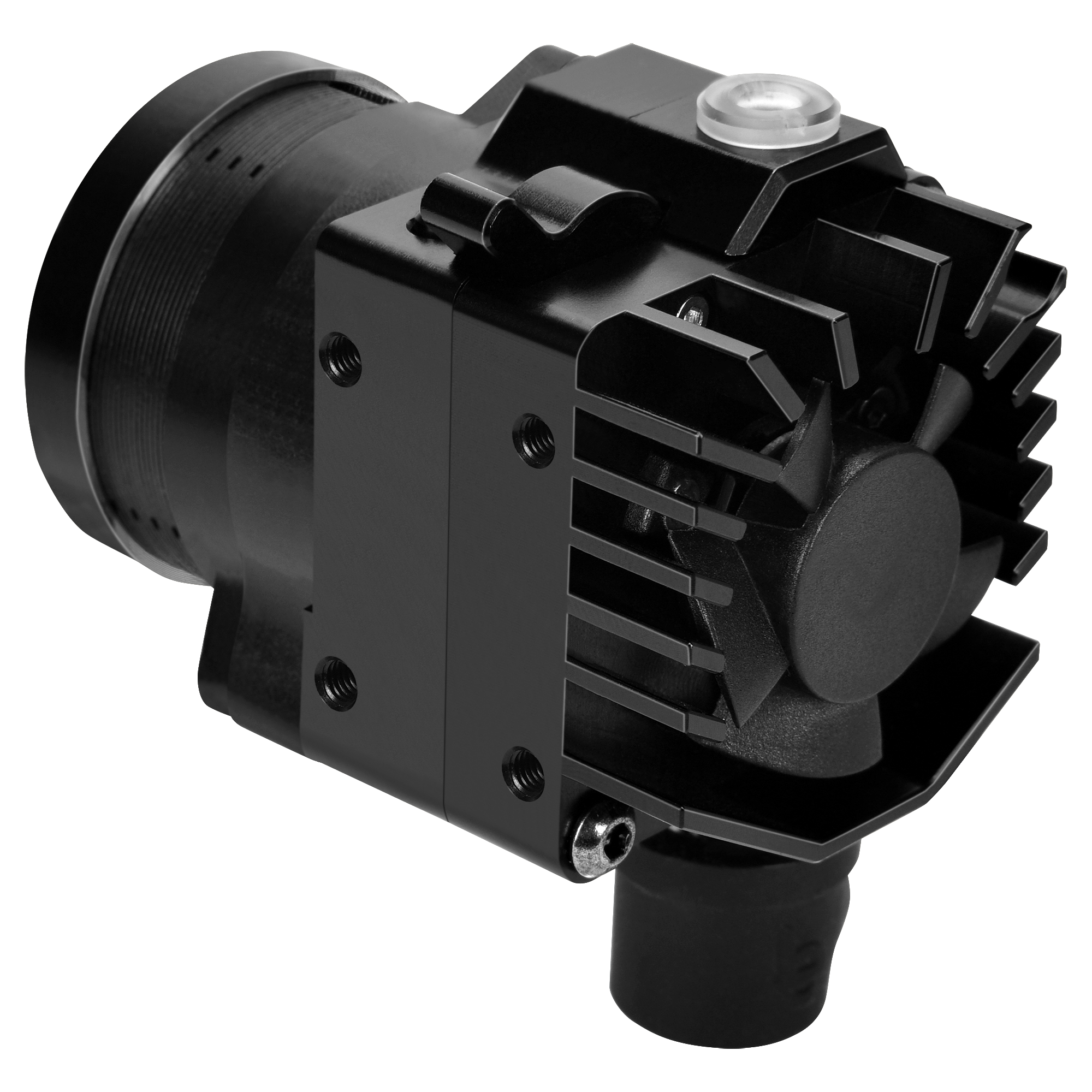

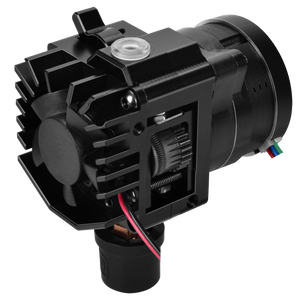

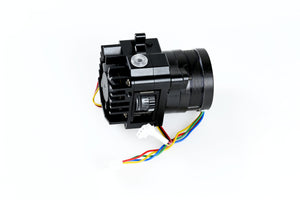

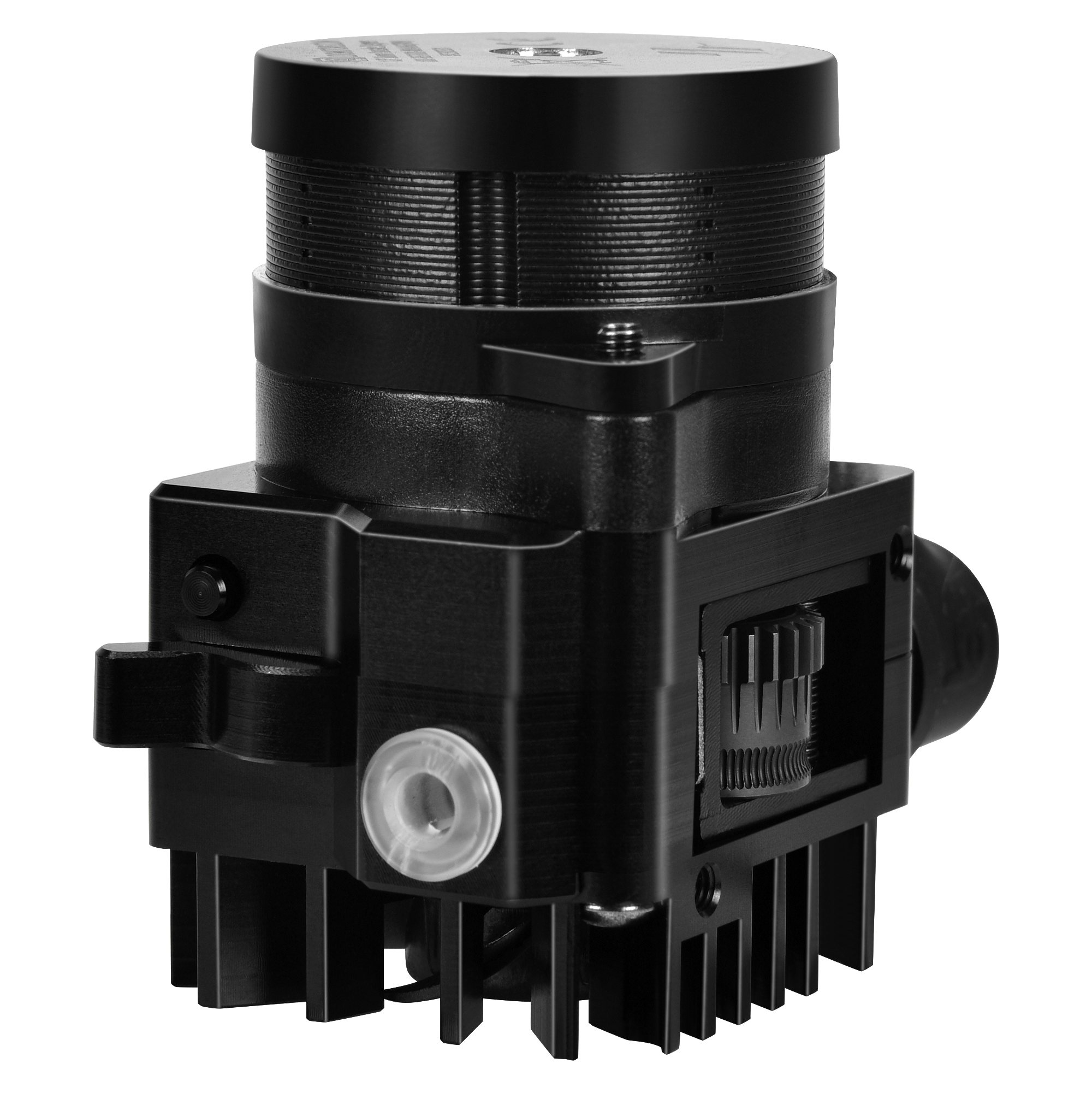

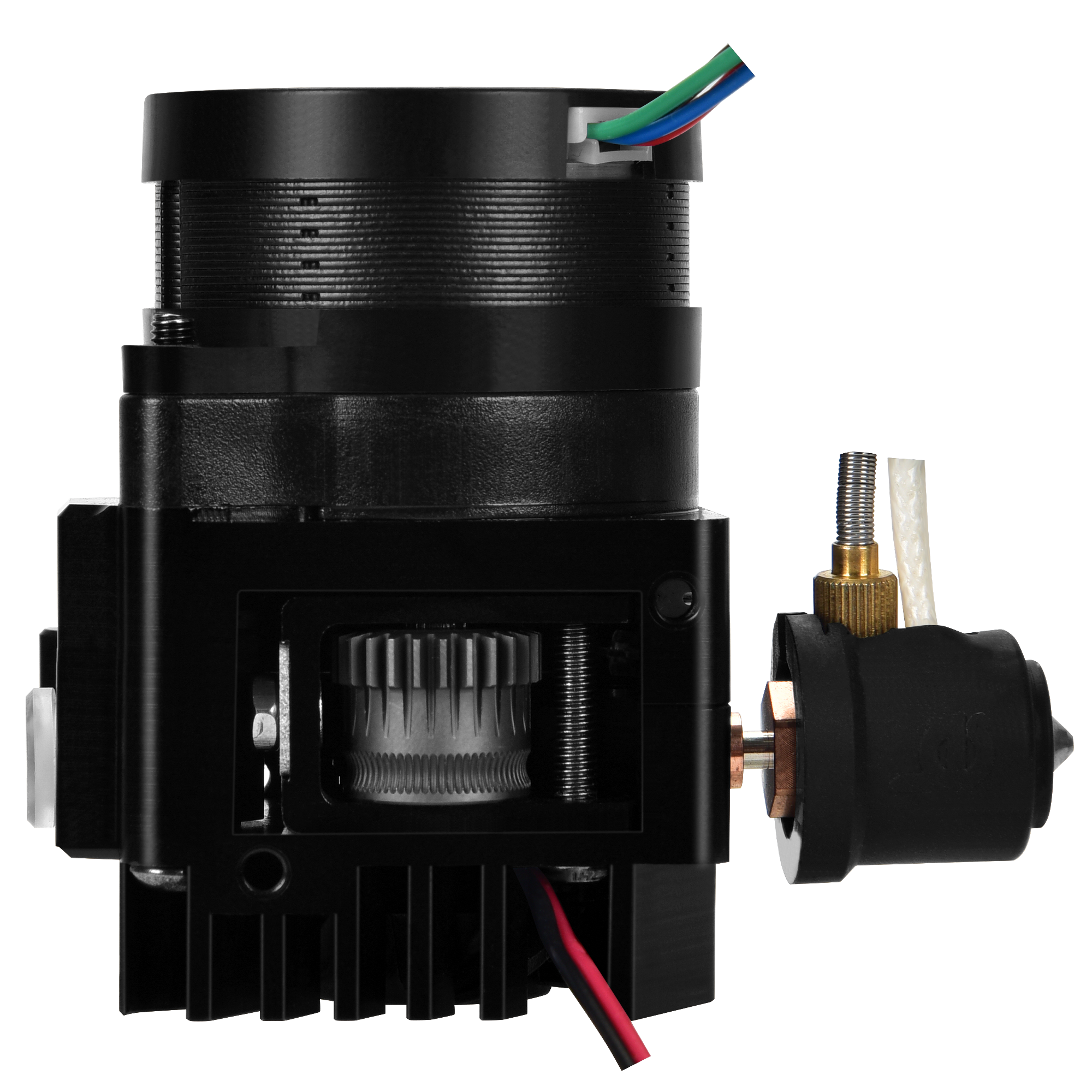

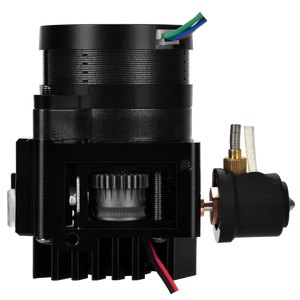

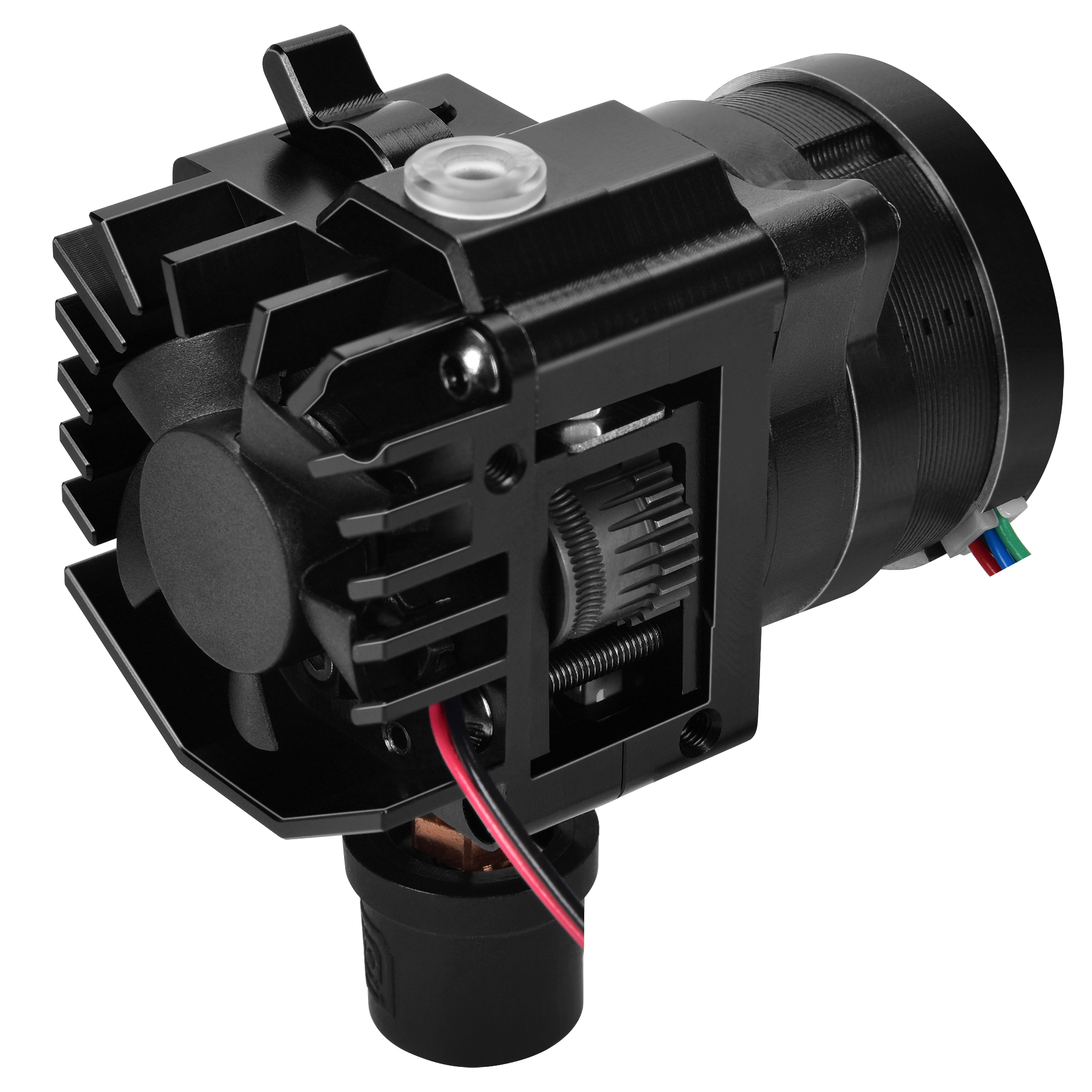

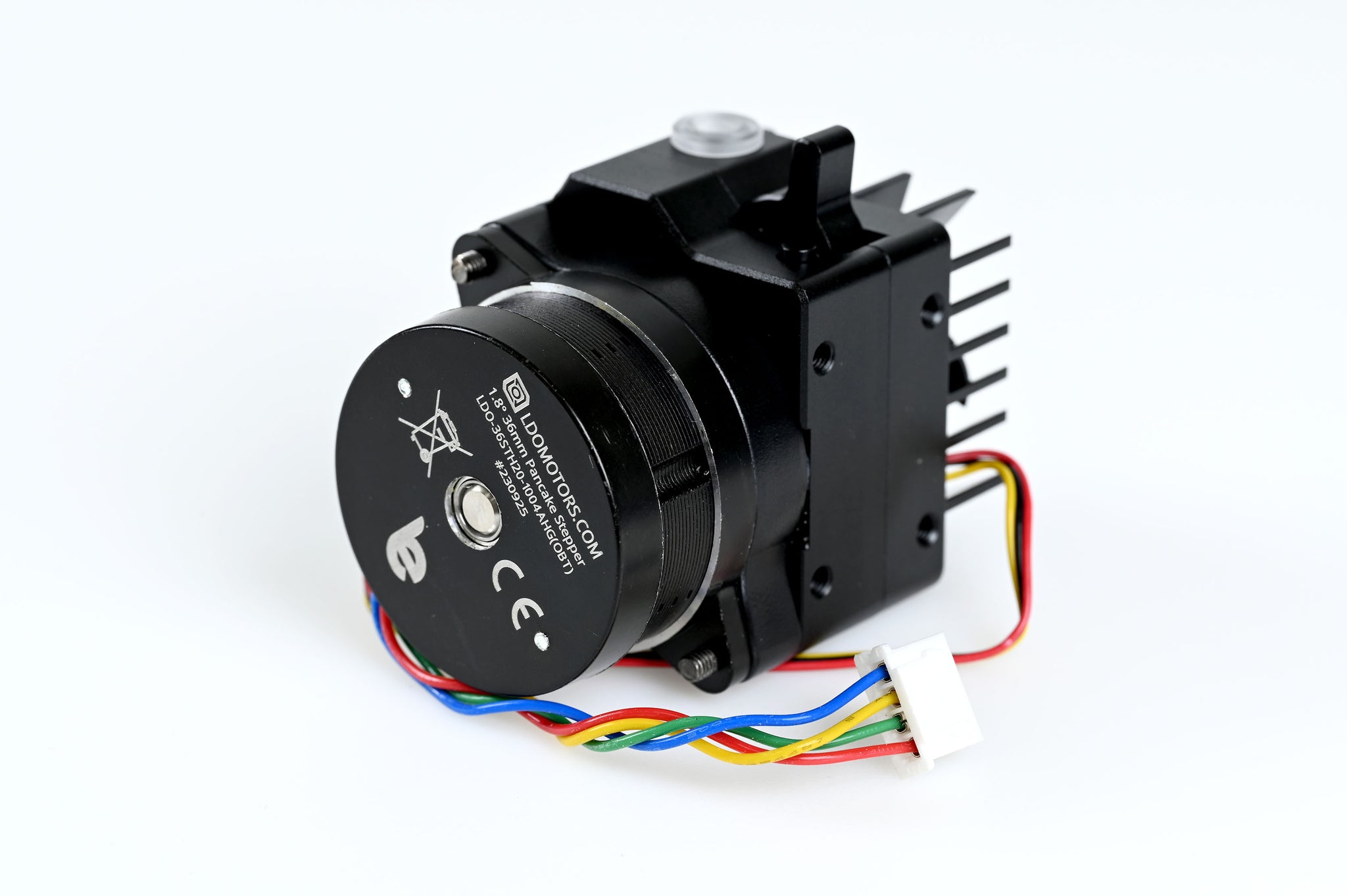

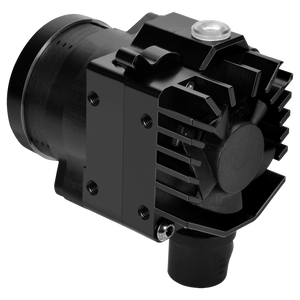

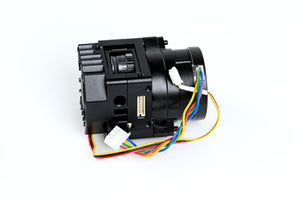

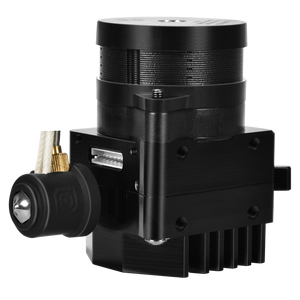

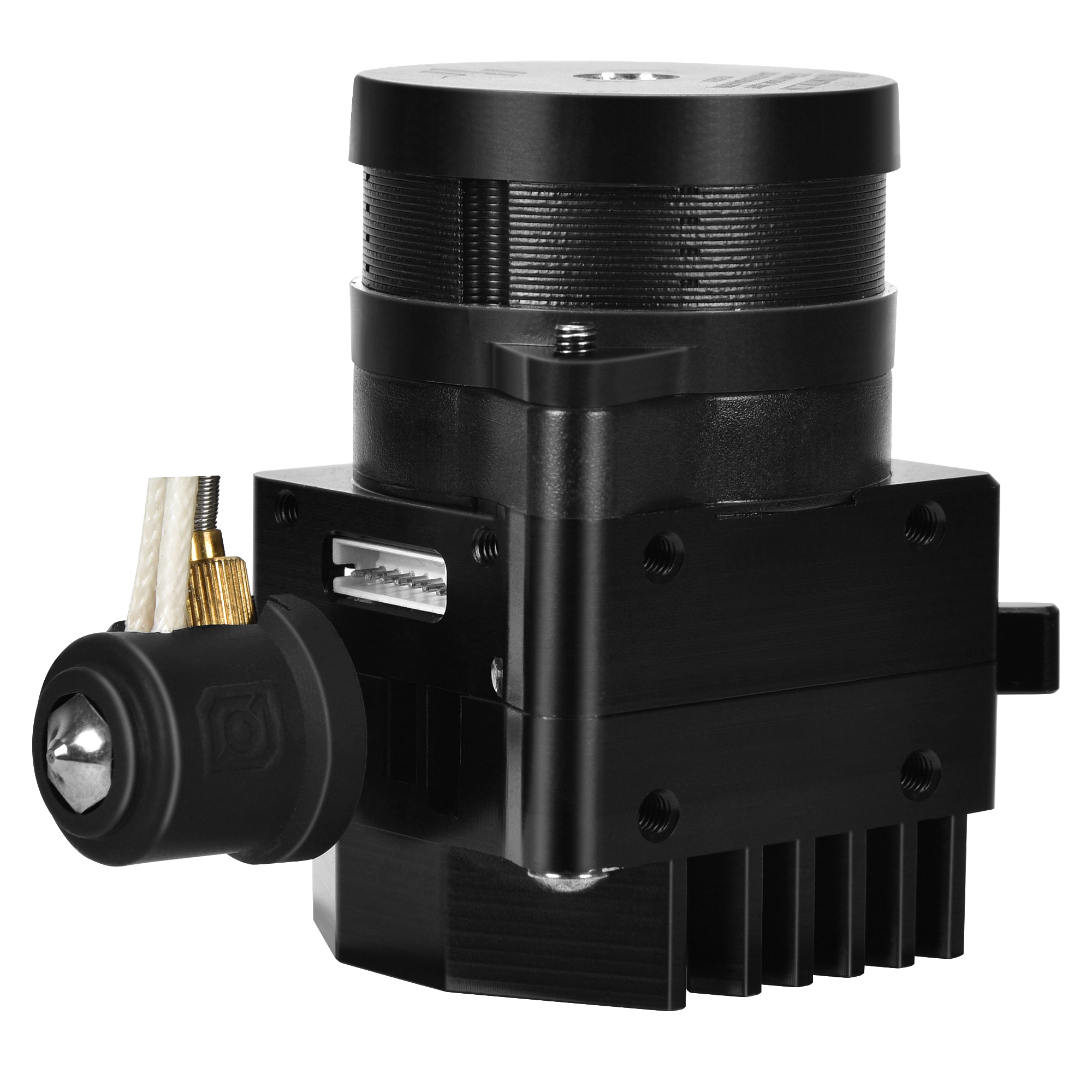

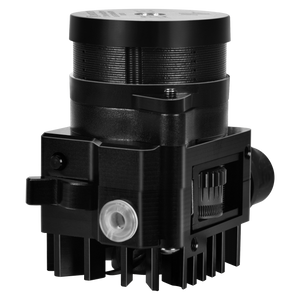

This Smart Orbiter v3.0 manufactured by LDO Motors is an innovative all in one dual drive extruder / hot end tool head assembly. The main mission of this design is the integration of the well proven Orbiter v2 concept into a lightweight all in one smart extruder.

    The Orbiter v3.0 was designed by Dr. Lorincz Robert, for more information visit https://www.orbiterprojects.com/so3/.

    • Pure plated copper heat-block with 24v/72W ceramic heater and 0.4mm Bondtech CHT nozzle for best possible weight to flow ratio
    • Heat-break performance optimized with finite element analysis for extreme temperature gradient to ensure clogless free printing experience
    • Unique tensioning mechanism with elastic predefined tension levels
    • Frameless recessed fan to reduce the extruder weight and outside dimension
    • Large RNC coated dual drive gears with planetary gear reduction, similar to Orbiter v2.0
    • New precision main shaft design to reduce gear eccentricity
    • Full aluminum housing with Delrin plastic gears for low noise and long lifetime
    • The smart feature – integrated electronics
    • Easy removal of the secondary drive gear for easy cleaning and maintenance
    • Double filament exit guide system for best TPU printing performance
    • Overall weight is 175g
