Jubilee Panels

$7.50

Size
Color
White
Black

In stock, ready to ship.

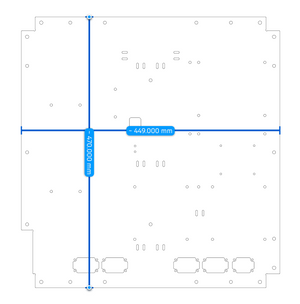

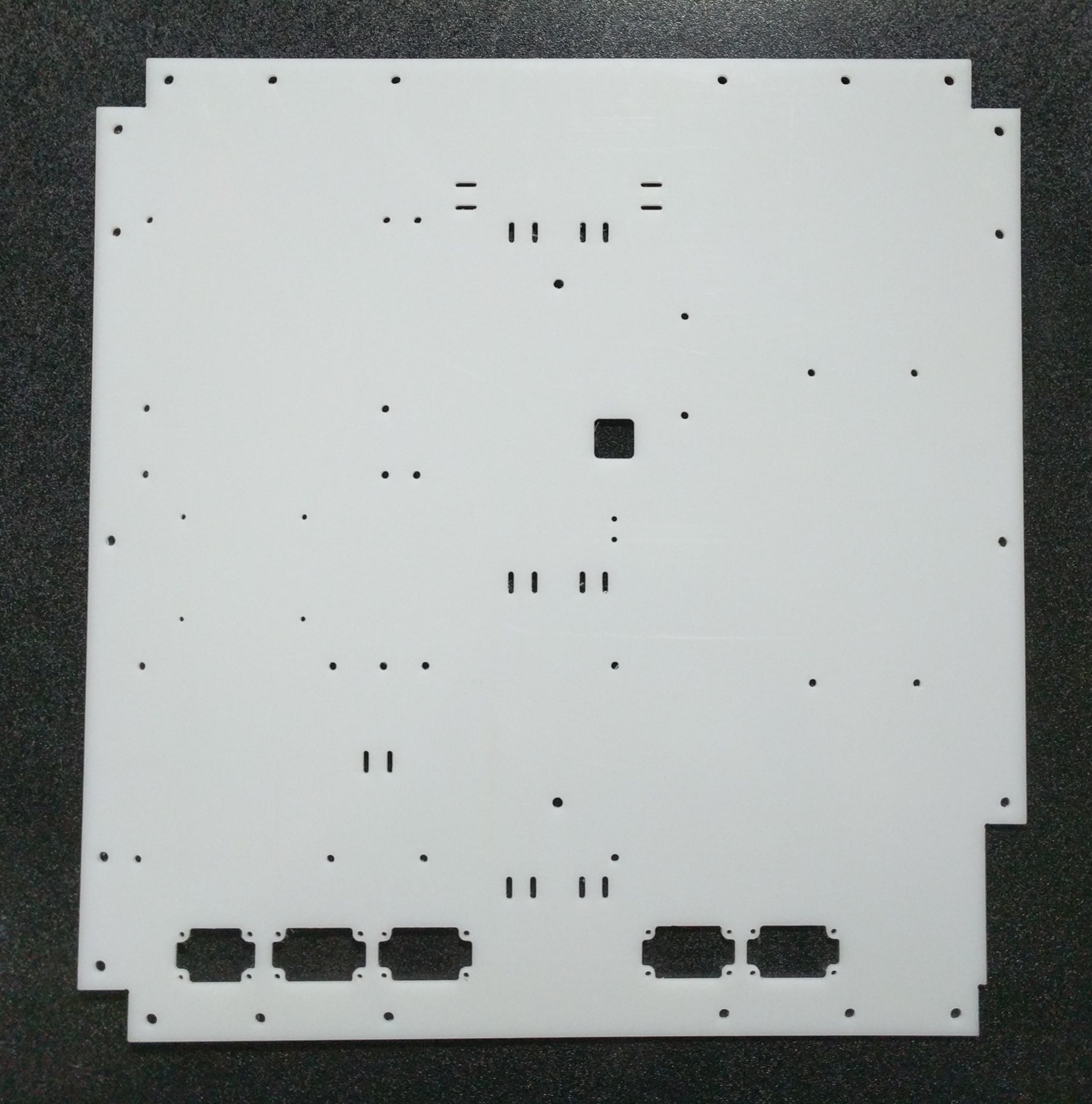

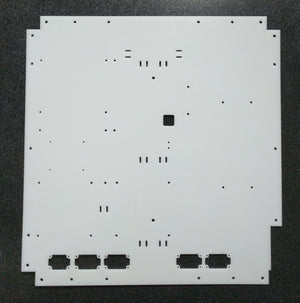

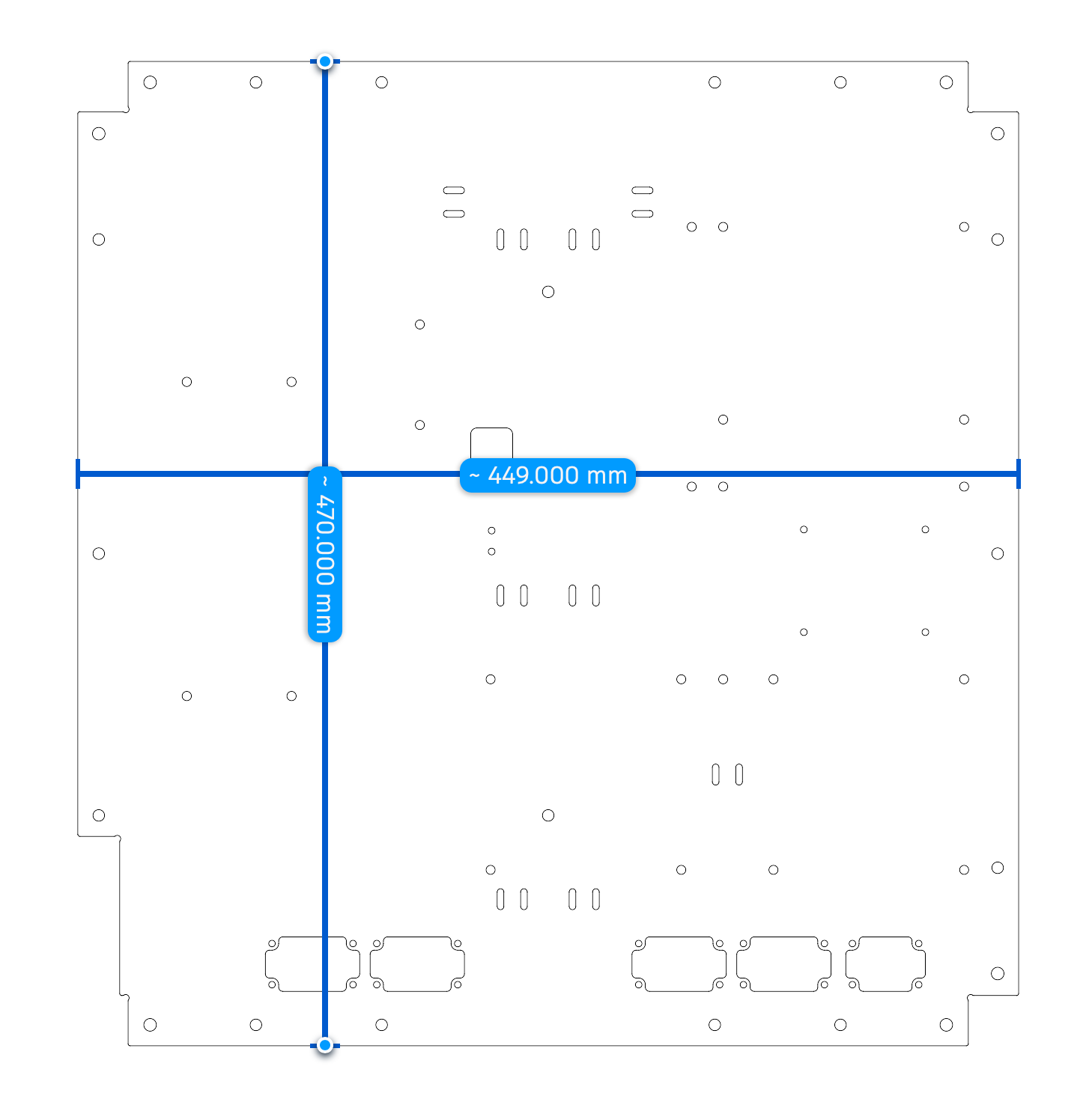

Back Panel

The back panel features convenient mounting points for all primary electronics components. The panel is cut from 3.175mm (1/8th in.) HDPE, which supports easy drilling of extra holes as needed. The panel includes built in cable tie down points and bolt hole patterns for various setups.


Versions:

v2.2.0 - Cut from Release 2.1.1 files but compatible up to 2.2.0, supports:

  • Duet 2 with a Duex5
  • Duet3 with a Raspberry Pi and two 3HC Expansion Boards

v2.2.1 - Cut from Release 2.2.1 files, supports:

  • Duet 2 with a Duex5
  • Duet3 with a Raspberry Pi and two 3HC Expansion Boards
  • Duet 3 Mini with a Raspberry Pi

2.2.1 introduces a hole pattern for the Duet 3 Mini in addition to evening out some space for wiring on the Duet2 and Duet3 hole patterns. 2.2.1 also drops the tool feedthrough holes since tool wiring can be fed through the bottom of the machine.

For more information on installing electronics, check out the wiki: https://jubilee3d.com/index.php?title=Assembly_Instructions#Electronics

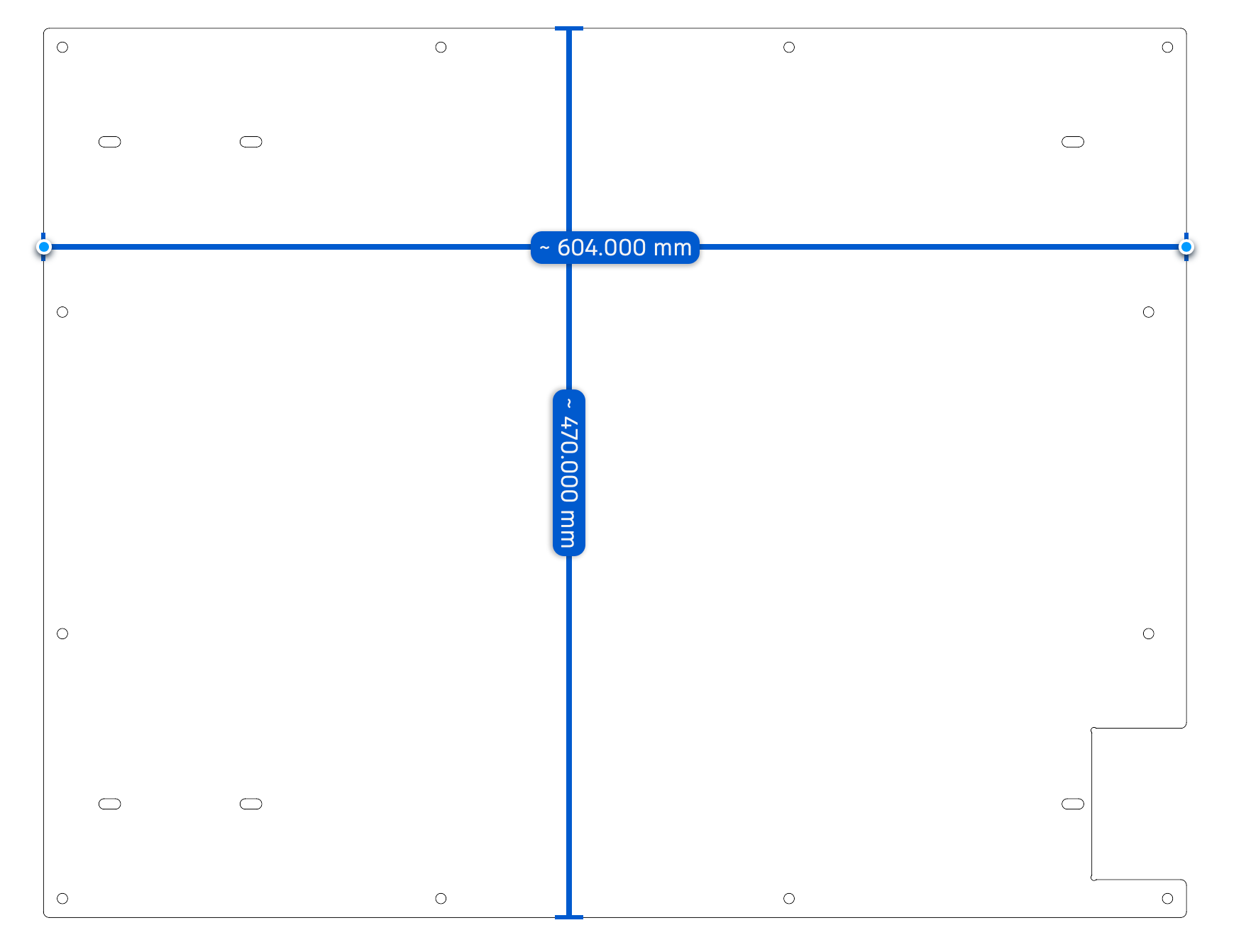

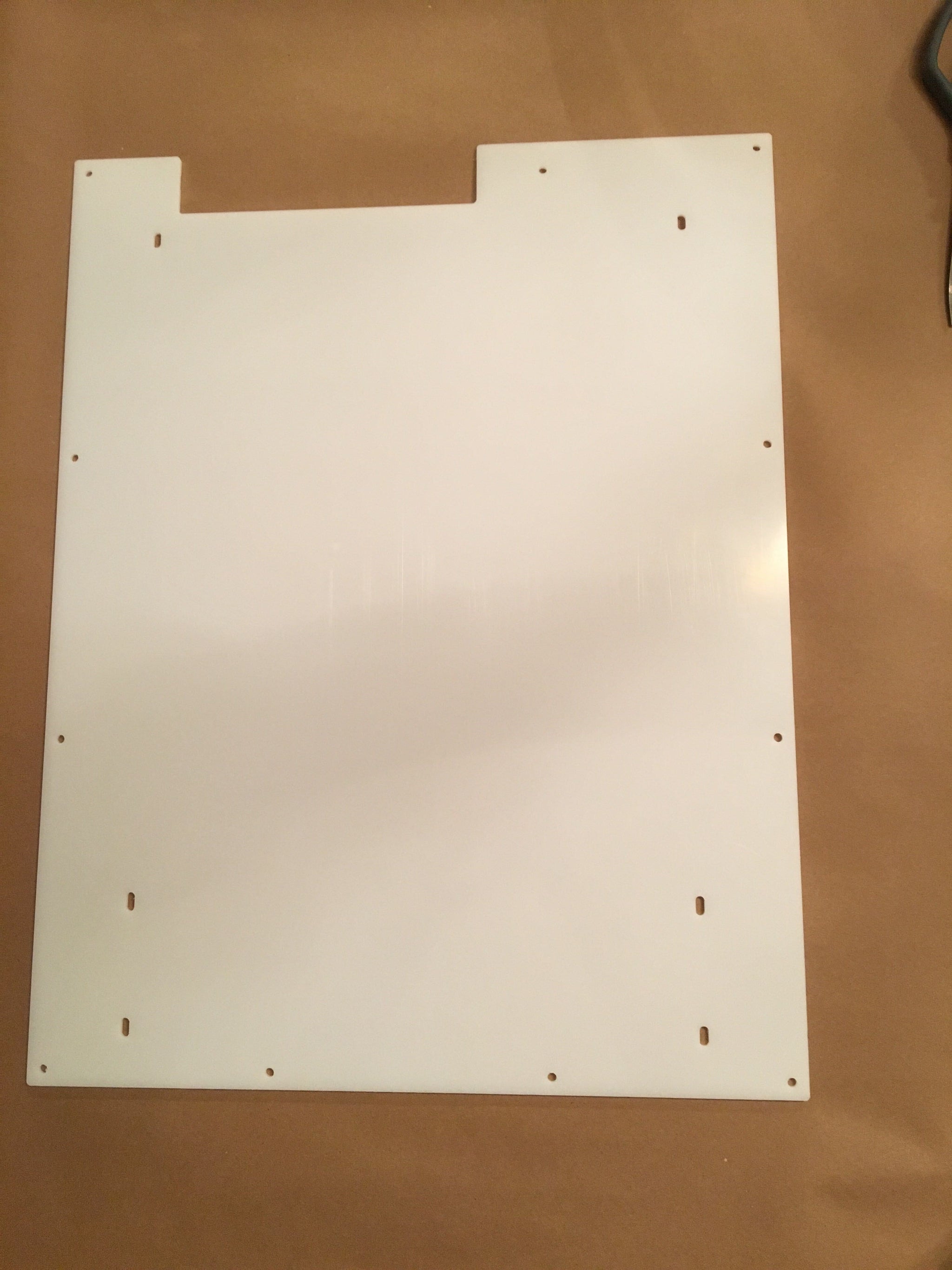

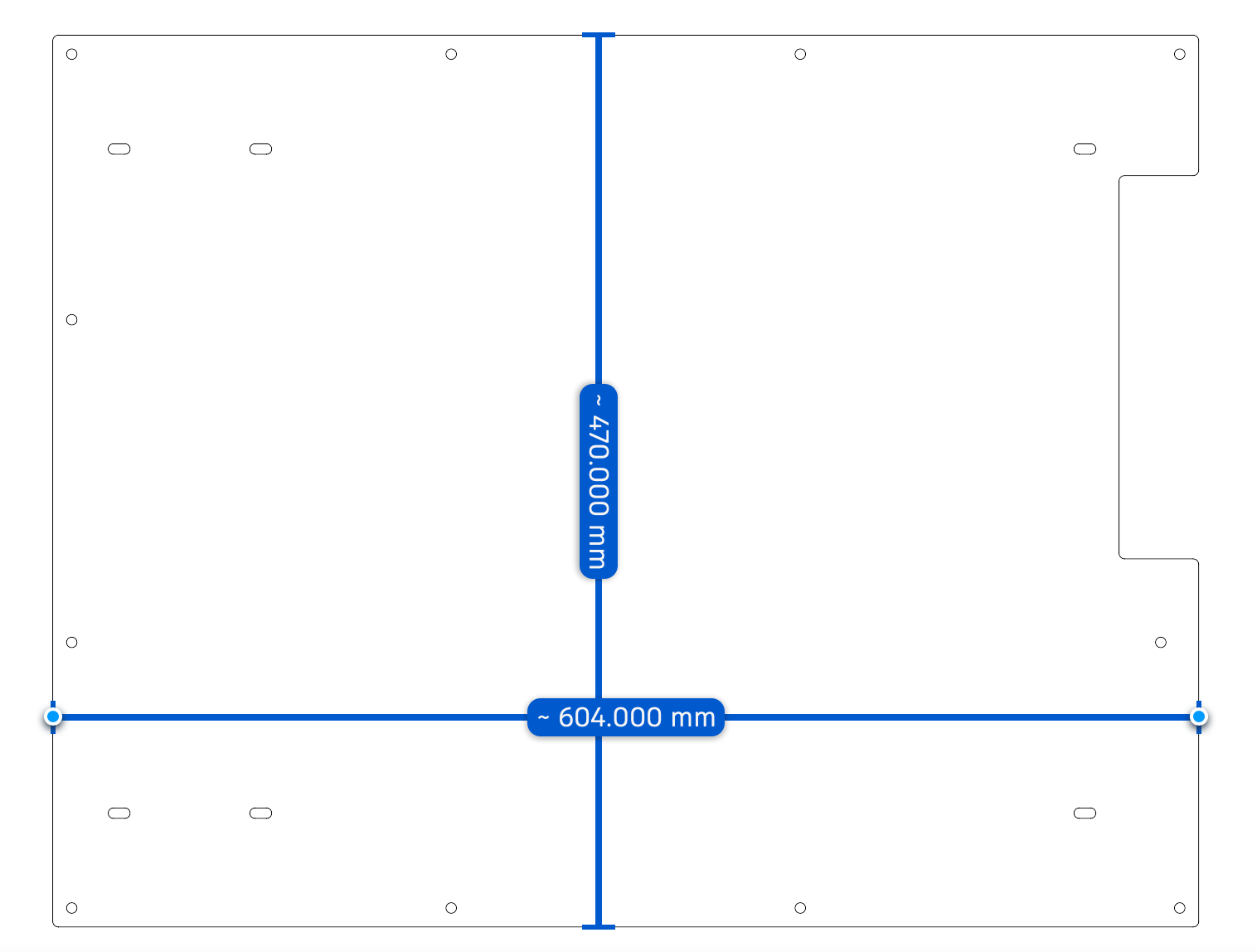

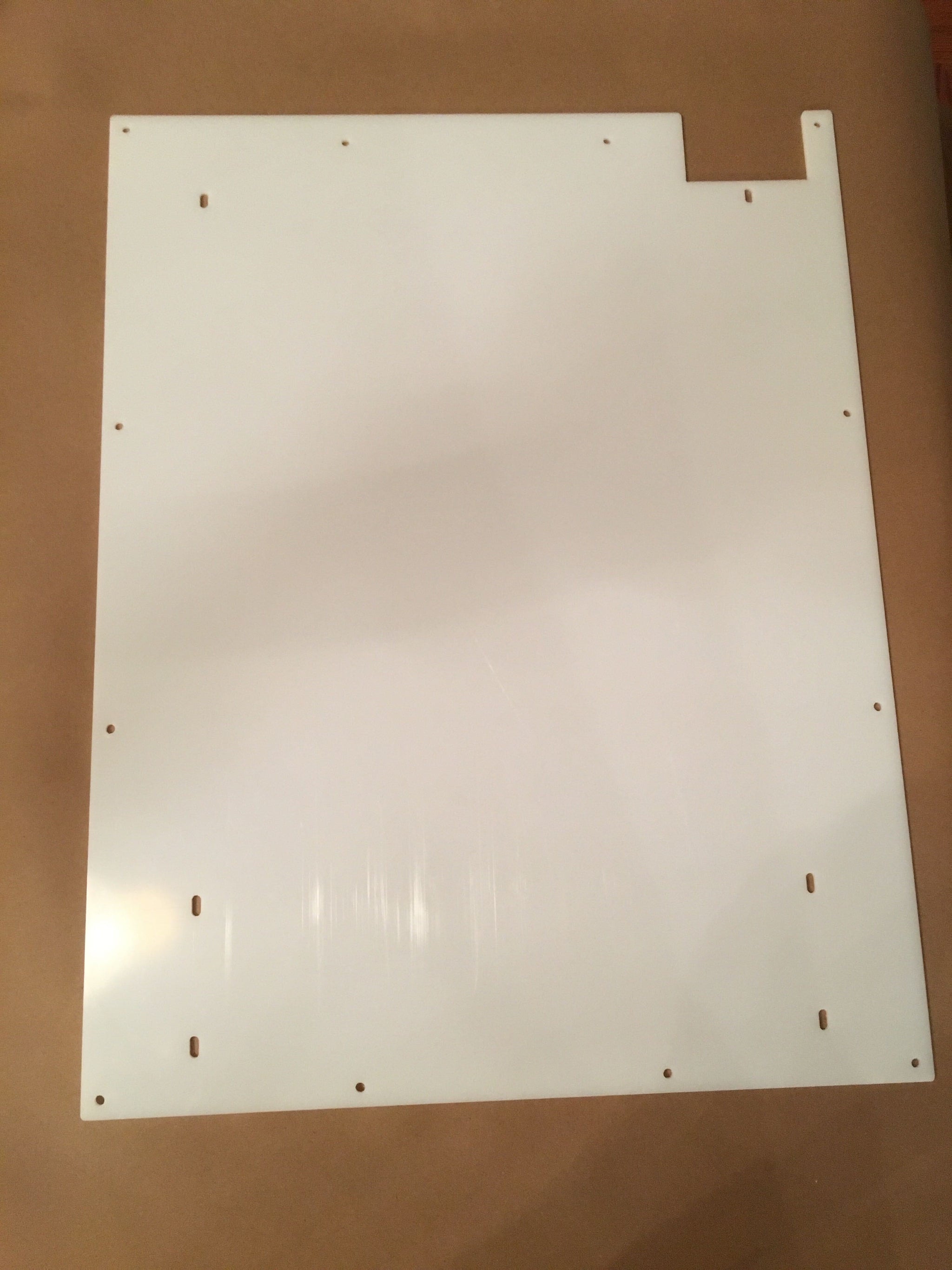

Side Panels

These side panels prevent drafts and quick temperature changes inside the machine while adding a tasteful exterior. Although they add negligible structural support, they are perfect for discouraging curious fingers and cats from interfering with a busy machine.
