E3D v6 Hemera XS

$159.99

Title

In stock, ready to ship.

We are proud to be a
US distributor for E3D.

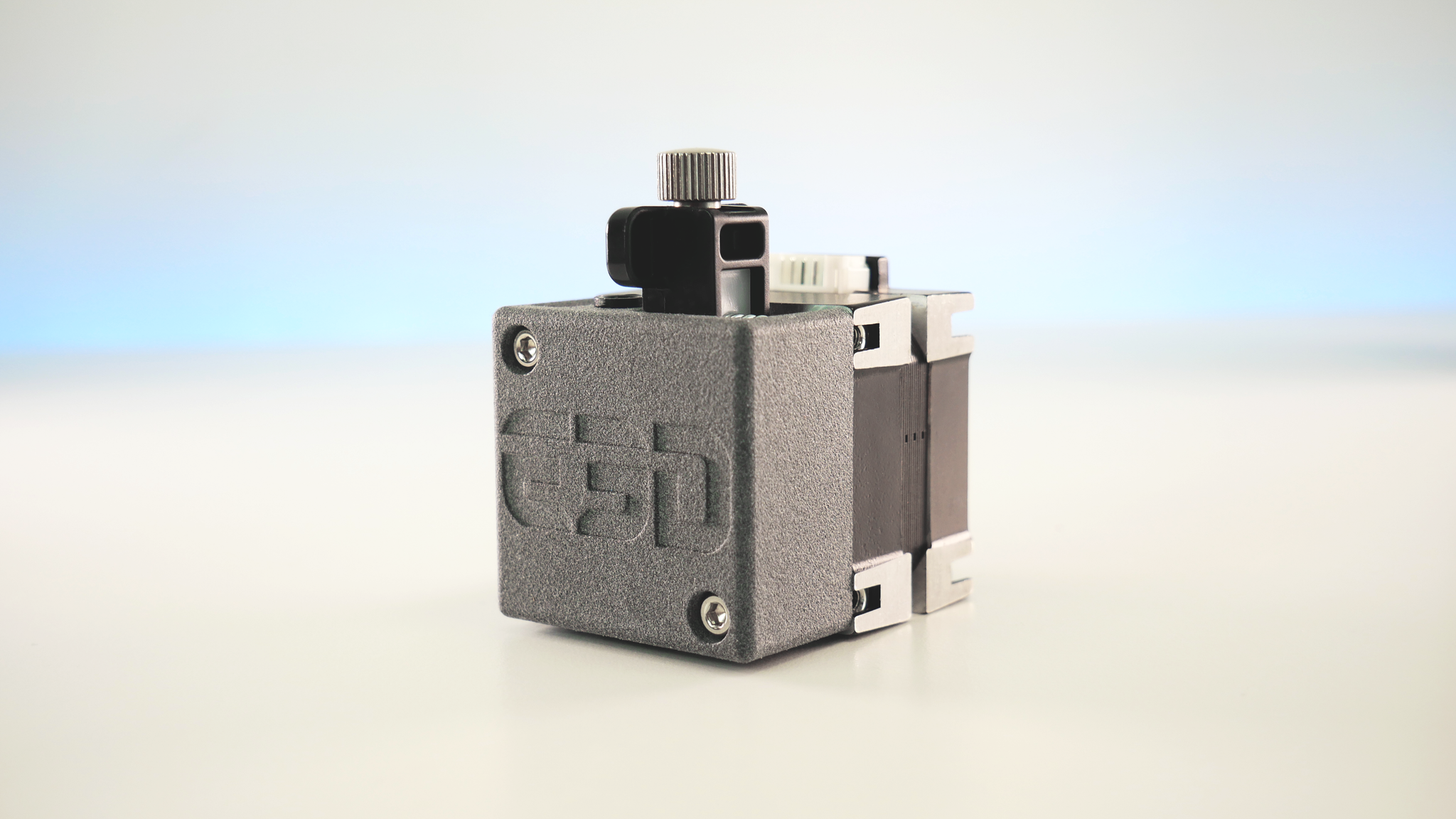

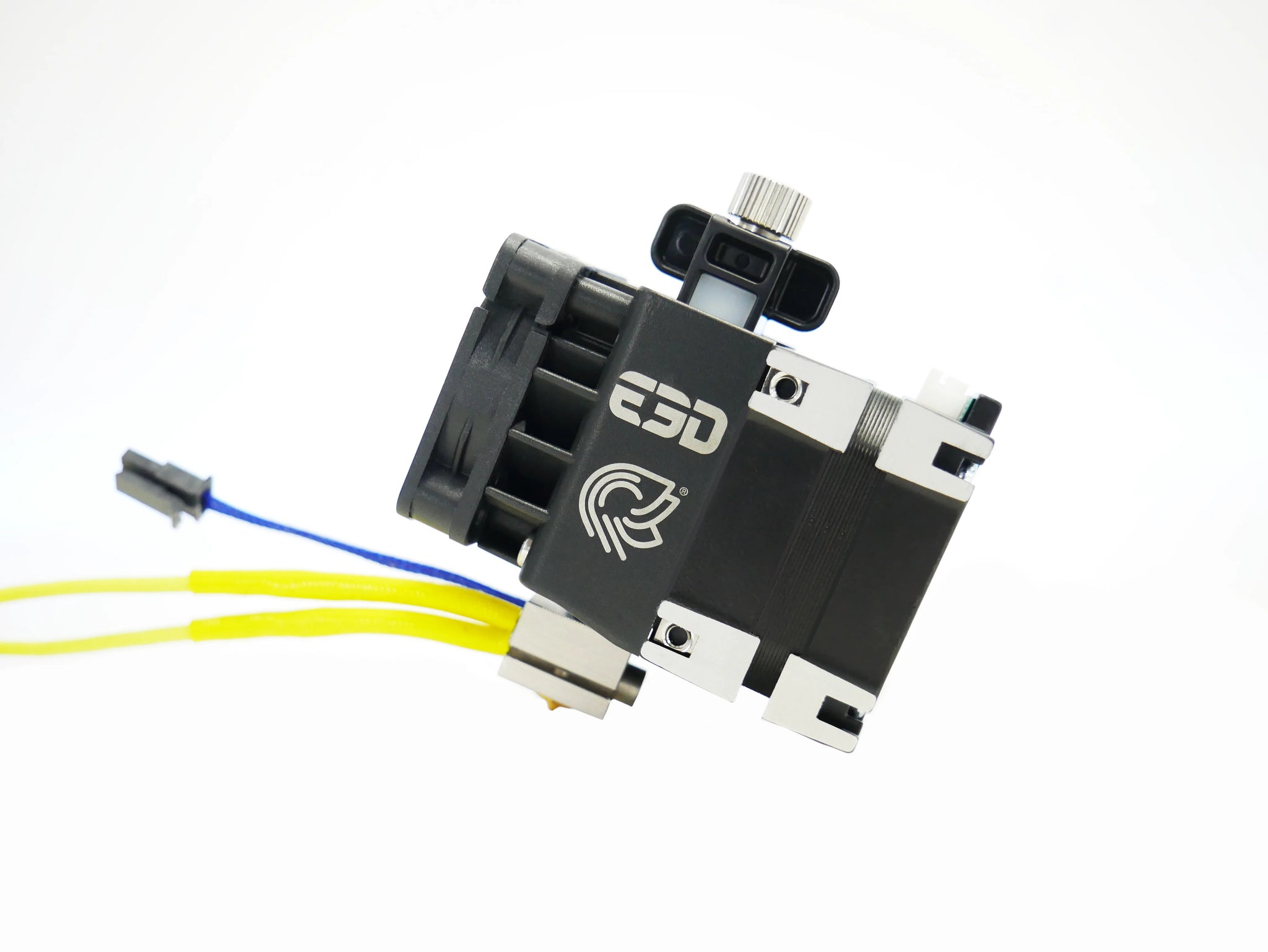

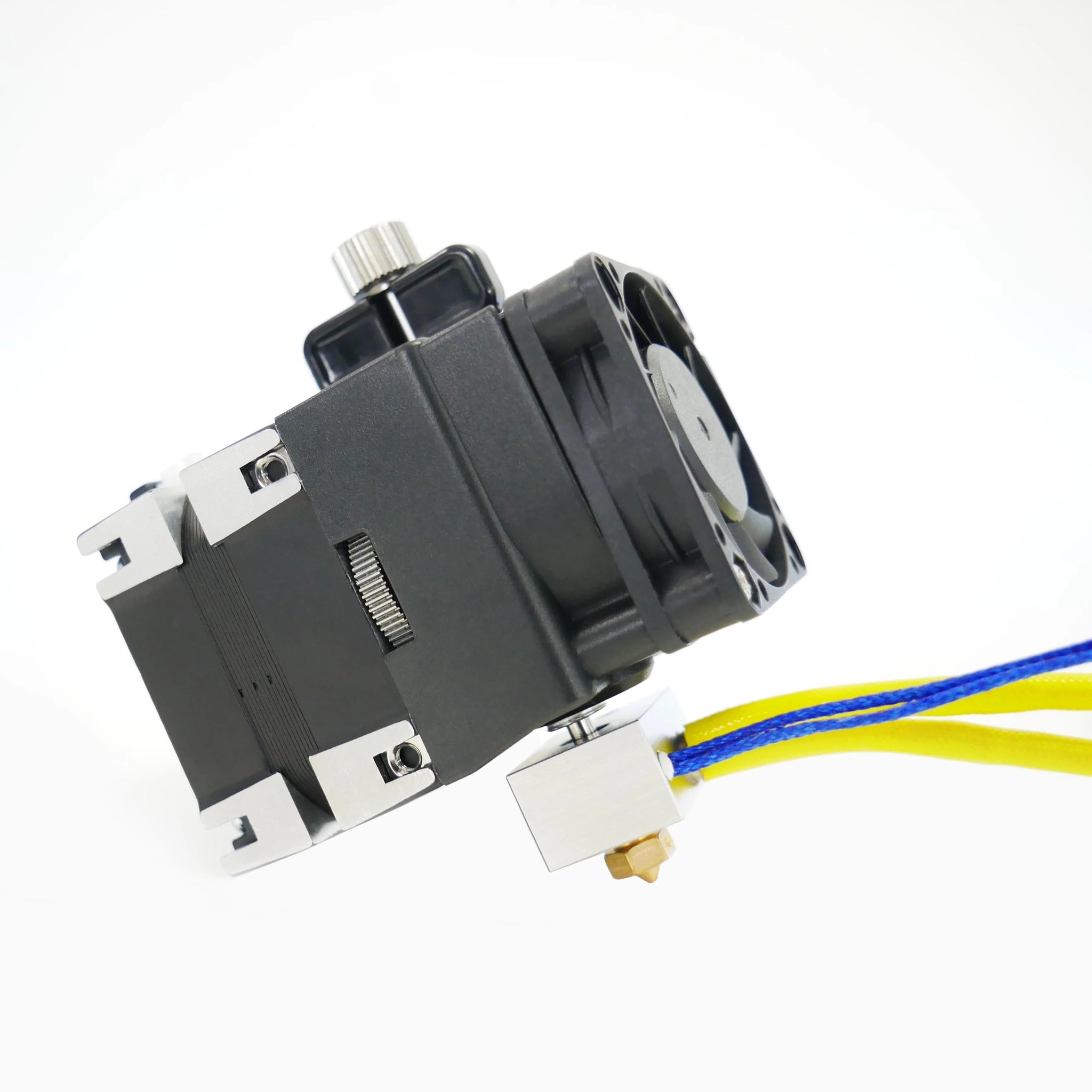

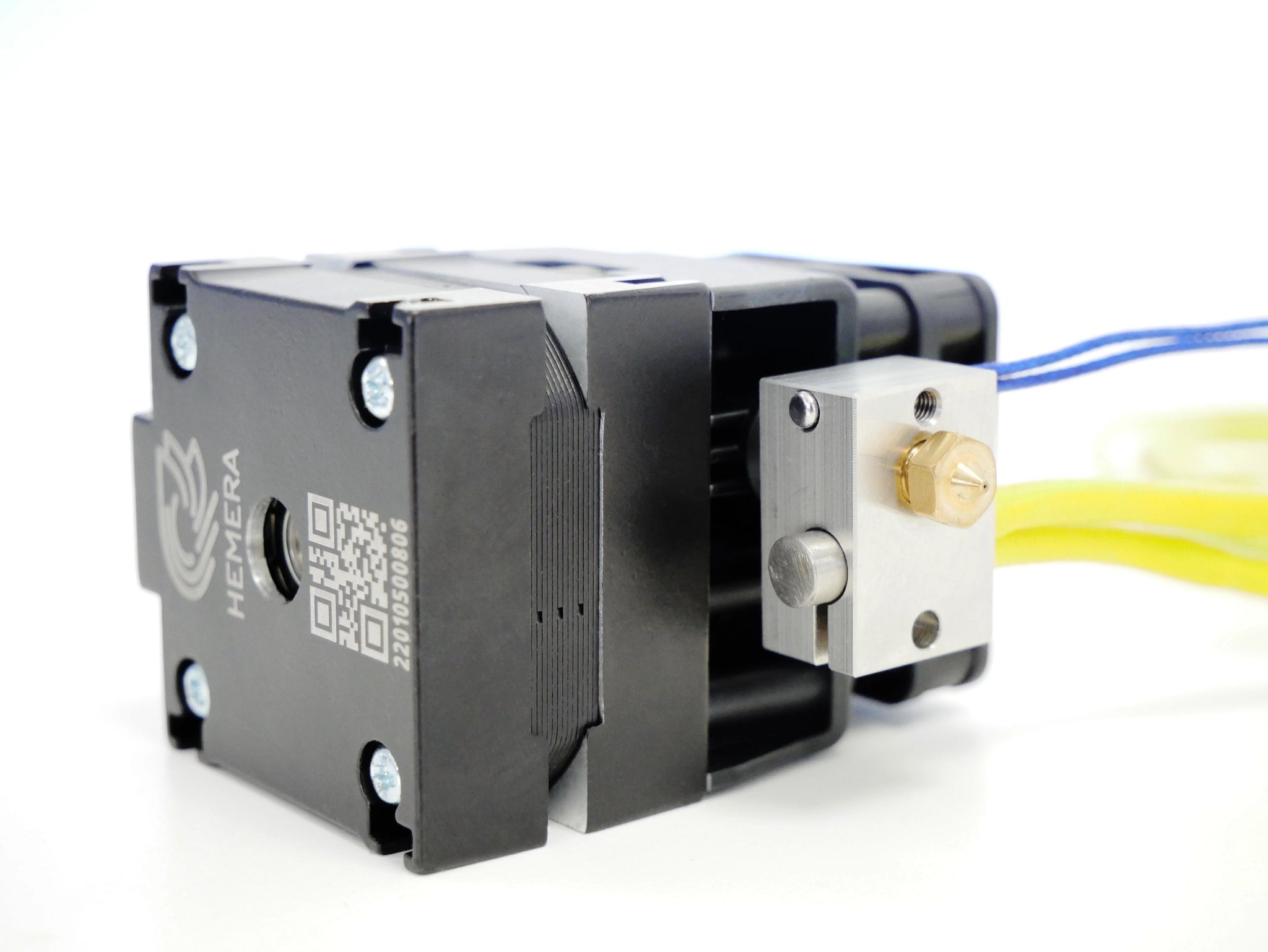

V6 Hemera XS is a compact, dual-drive extrusion system. It’s 92g lighter than classic Hemera, so it can move faster on your 3D printer’s motion system with less inertia, reducing print artifacts such as ghosting.


Need a toolboard for your print head? Check out the Duet Toolboard 1LC

Hemera is the most powerful extruder on the market. It provides excellent grip strength, outperforming the competition with 98.07N maximum pushing force, meaning you can extrude at high flow rates with minimised risk of stripping filament.

Upgradable for all performance requirements

Built around the E3D ecosystem, Hemera is adaptable to meet whatever performance requirements you may need. Print PLA at 600mm3/min with the standard V6 heater block or scale up to print carbon fibre reinforced PEEK at 6600mm3/m at 450C with the SuperVolcano HeaterBlock and NozzleX.

Easily adaptable

The T slot mounting system means you can easily design mounts for your 3D printer or choose from a selection of pre-designed mount adaptors to get you set up as quickly as possible.

A system designed to work together

Integration is key to a responsive extrusion system. Hemera is a compact single unit built under one roof by one engineering team. Our parts work together with known tolerances and guaranteed compatibility, so there is no risk of purchasing a component from a 3rd party that doesn’t quite work.

Accesible pricing for every user

E3D’s manufacturing capabilities have significantly increased over the years. Design choices such as die-casting custom motor faceplates and heatsinks have enabled us to provide high quality, consistent parts at an affordable price point.

Please note:

Whilst Hemera’s custom motor is similar to a Nema 17, it isn’t a standard Nema 17. Therefore, Hemera is not compatible with other Nema 17 motors and you will not be able to swap the motor with either a compact but powerful, slimline motor or other 3rd party motors.

Key features:

- Direct drive

- Great for flexible filaments

- T-slot mounting system

- Optimised airflow

- Maximum temperature: 300°C

- 1.8° step angle

- Recommended current: 1.40A Peak (~0.99A RMS)

- Filament Diameter: 1.75

- Nozzle type: V6

Kit contains:

- 1 x 12V or 24V 30W Heater cartridge (if direct version)

- 1 x Thermistor cartridge (if direct version)

- 1 x Molex cable (if direct version)

- 1 x 40 x 40 x 10 mm 12V or 24V Fan (if direct version)

- 1 x Cable tie

- 1 x E3D Hemera sink

- 1 x Idler

- 1 x Idler slide block

- 1 x Idler spring block

- 1 x Thumbwheel

- 1 x Idler shaft

- 1 x Drive hobb

- 1 x Idler hobb

- 1 x V6 Heater Block (if direct version)

- 1 x E3D Hemera XS motor

- 1 x Motor cable

- 1 x E3D Hemera fixings kit (if direct version)

- 1 x V6 fixings kit (if direct version)

- 1 x E3D Hemera heatbreak (or Hemera bowden adaptor if Bowden version)

- 1 x Brass 1.75mm, 0.4mm nozzle (if direct version)

- 1 x V6 sock (if direct version)

- 1 x Thermal compound (if direct version)
