$119.99
In stock, ready to ship.

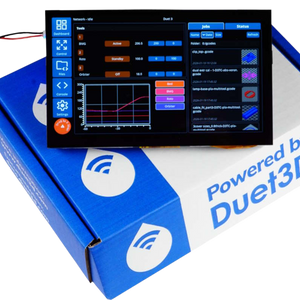

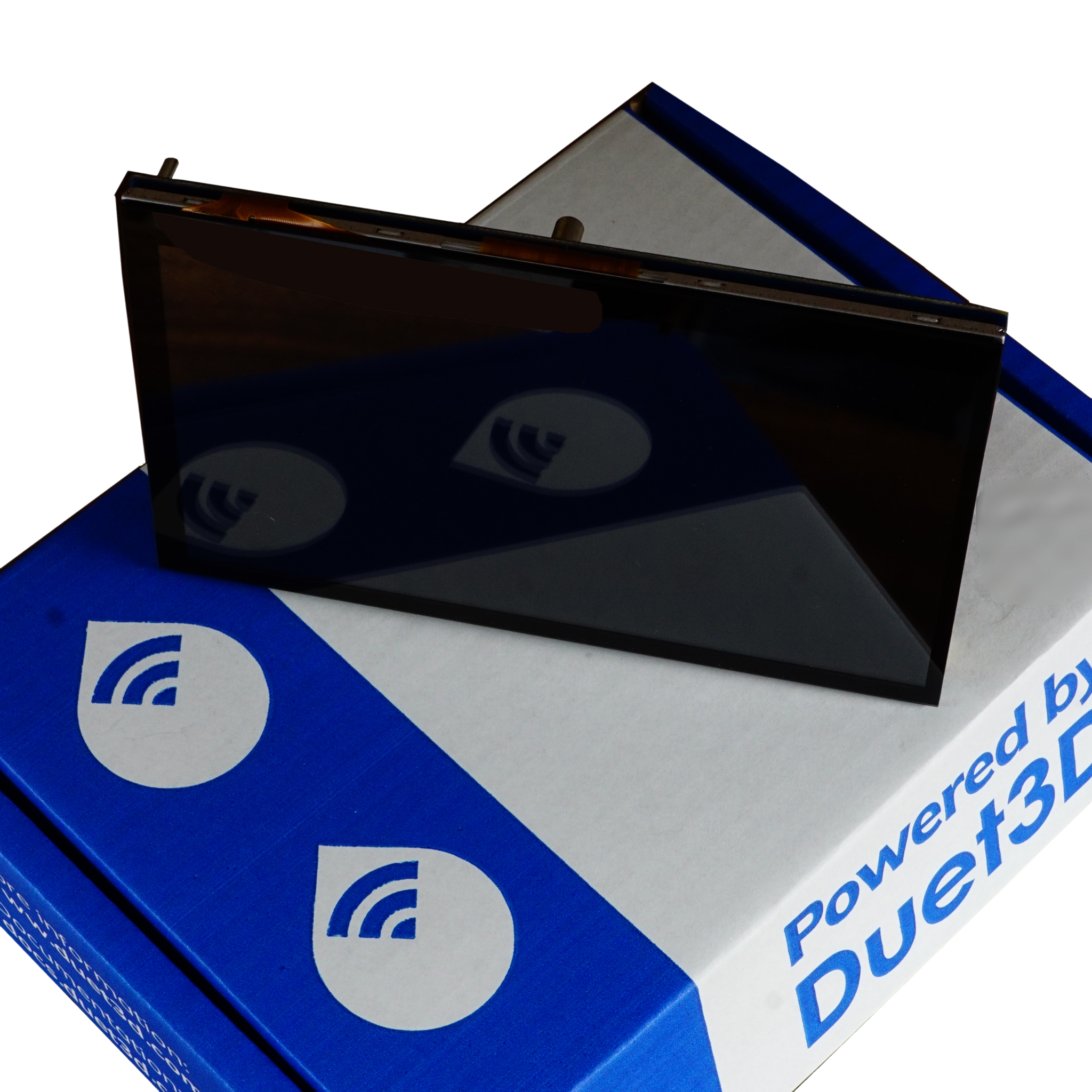

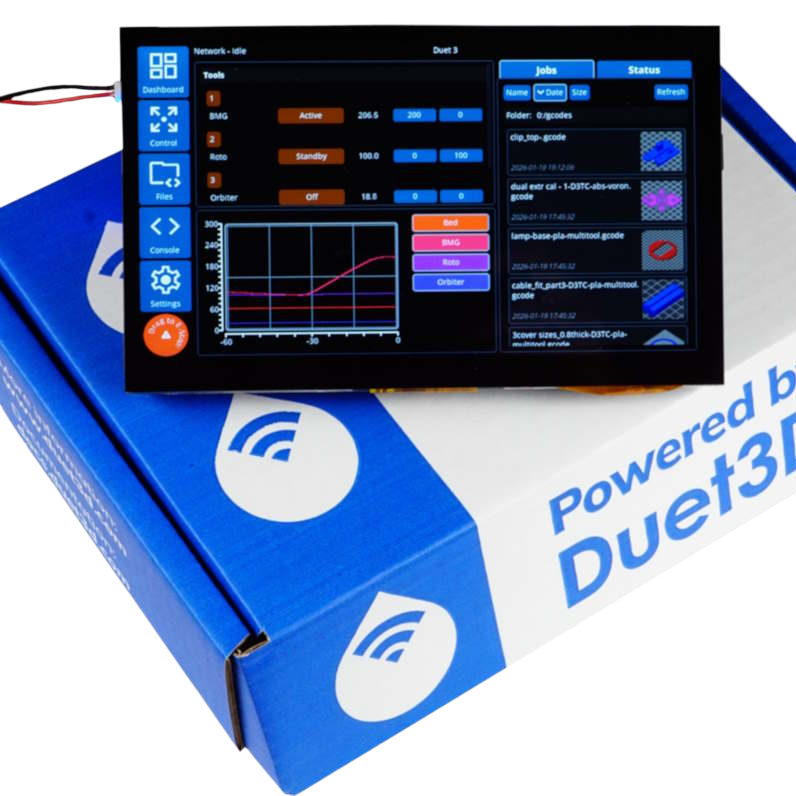

The Duet3D DuetScreen is a family of color touch screen controllers for Duet 2 and Duet 3 based machines. It is also compatible with other Controllers running RepRapFirmware.
The current hardware implementation is the DuetScreen 7, other screen sizes are planned in the future.
The DuetScreen application is built on LVGL and provides a modern machine control UI, initially focused on 3d printers. Its modular design allows for future versions for other machine types.
Processor Allwinner T113-S3
Processor features Dual-core ARM Cortex-A7, 1.2GHz, 128Mb RAM
Screen Resolution 1024*600
Touch Screen Capacitive
Networking Onboard Wifi module, option for internal or external antenna
USB 1 x USB-A and 1 x USB-C 2.0 ports
Serial 3x UART, 1x USART (not populated in version 1.0 hardware or explicitly supported in the DuetScreen Software)
Other Comms 2x I2C (not populated in version 1.0 hardware or explicitly supported in the DuetScreen Software)
Buzzer On Board Piezo Buzzer
Speaker Header to connect an 8 Ohm mono speaker
DuetScreen
Pre-Flashed uSD card (installed)
Connector pack:
Learn more at Duet's Documentation
