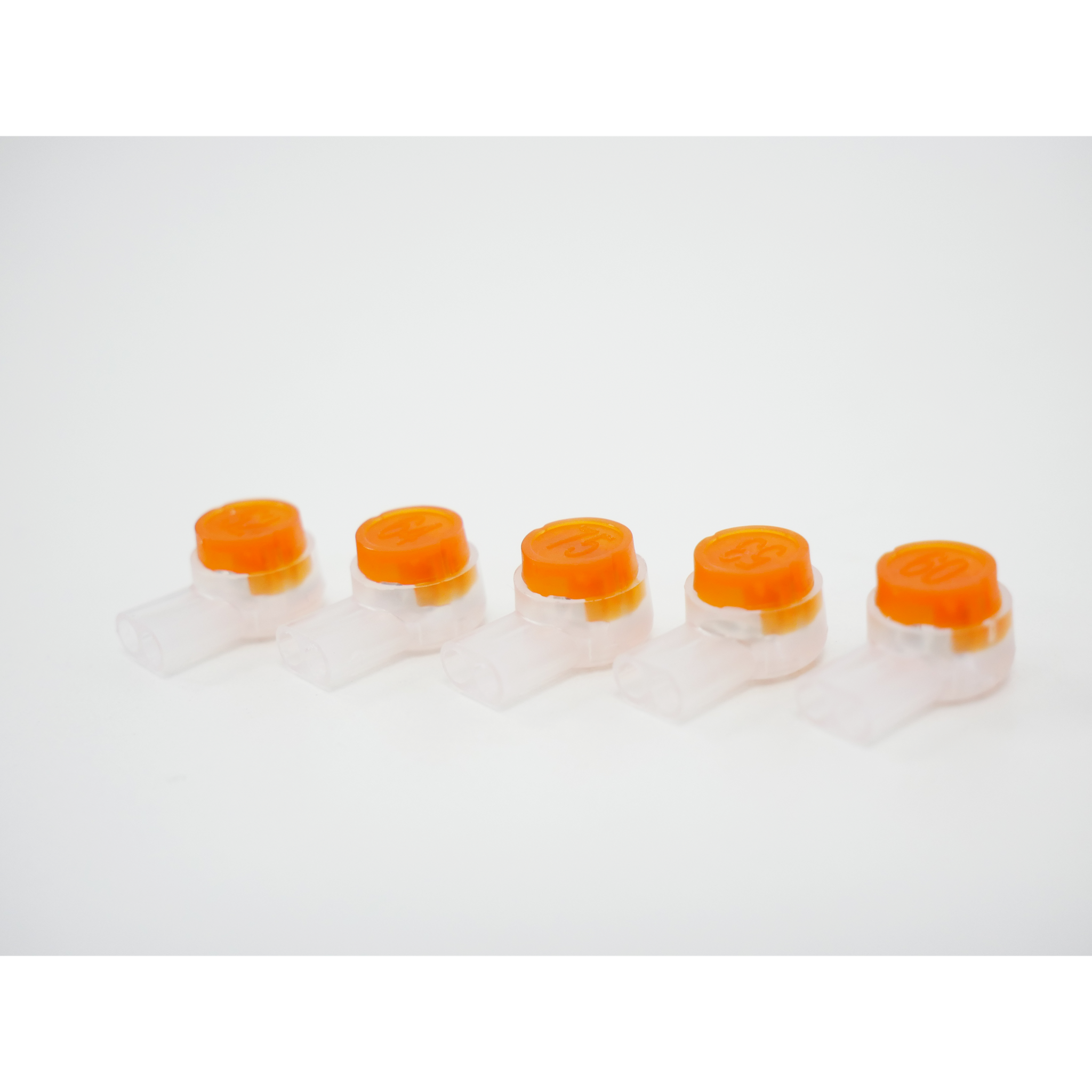

Butt Splice Connectors

$0.49

In stock, ready to ship.

As used on the Revo CR, but also usable on other things. Quantity 1 = 1 splice connector.

The underside of the connector is translucent. Check to make sure the wires are all the way at the end of the holes before pressing the button on the connector. Otherwise, you risk them not being secured by the blade inside the connector.

butt_splice_connector_underside-01.svg



You need to make sure the wires stay in position whilst you press down the button on the connector.
Pressing the button cuts into the wires and fills the cavity with resin. This holds them in place and provides an electrical connection.
