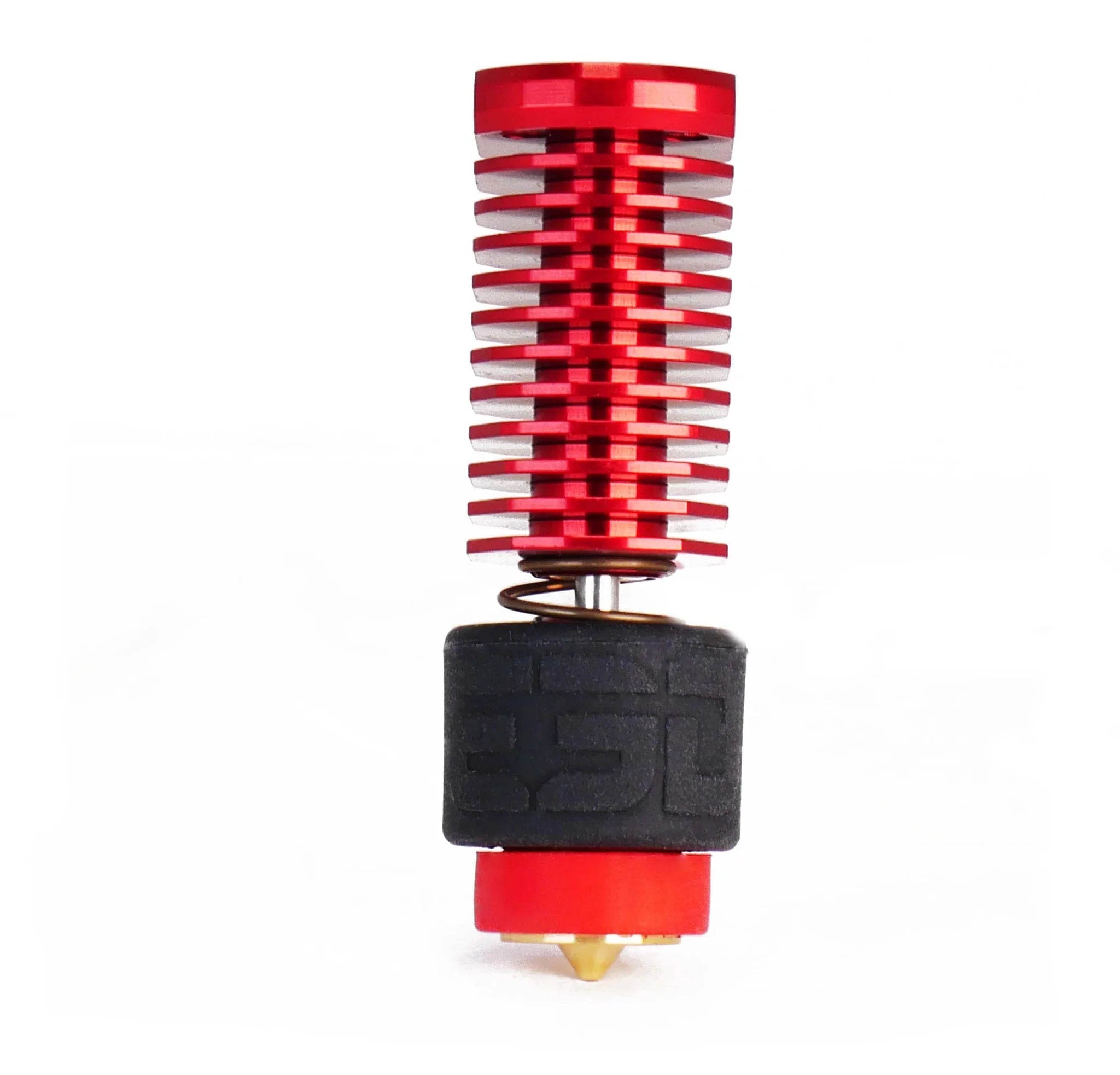

Smaller, lighter, and better than ever before, the Revo Voron HotEnd uses the smallest heatsink we’ve produced so far. Weighing in at only 25g, use Revo Voron to squeeze more speed performance from your motion system. Intended for direct drive setups, Revo Voron is fully compatible with the Revo ecosystem, so you can easily change nozzles without tools or hot tightening at room temperature, using just your fingers. With an anodized red, blue, or grey heatsink, not only does Revo Voron run cool – it looks cool, too.
Designed for use with Revo Nozzles · Works with a Revo HeaterCore for faster heat-ups
Smallest and lightest HotEnd produced so far
Titanium-like performance
Ultra-lightweight construction for improved speed performance
Change nozzles at room temperature using just your fingers. No complex tools, no hot tightening. Revo Nozzles are factory sealed nozzle and heatbreak in one, so they’re easy to fit and can’t leak material when in use.
Titanium-like performance
E3D's special manufacturing process gives this aluminum HotEnd the strength and low thermal conductivity of titanium, without actually being titanium!
New hotness
A Revo HeaterCore heats up in seconds. It’s much safer too – unlike other solutions on the market, a positive temperature coefficient (PTC) means the Revo HeaterCore can not melt at extreme temperatures: power reduces as it gets hotter, so hazards are reduced in the event of a thermal runaway.
Runs cool, looks cool
With an anodized red, blue, or grey heatsink, not only does Revo Voron run cool – it looks cool, too.
Flexible to any setup

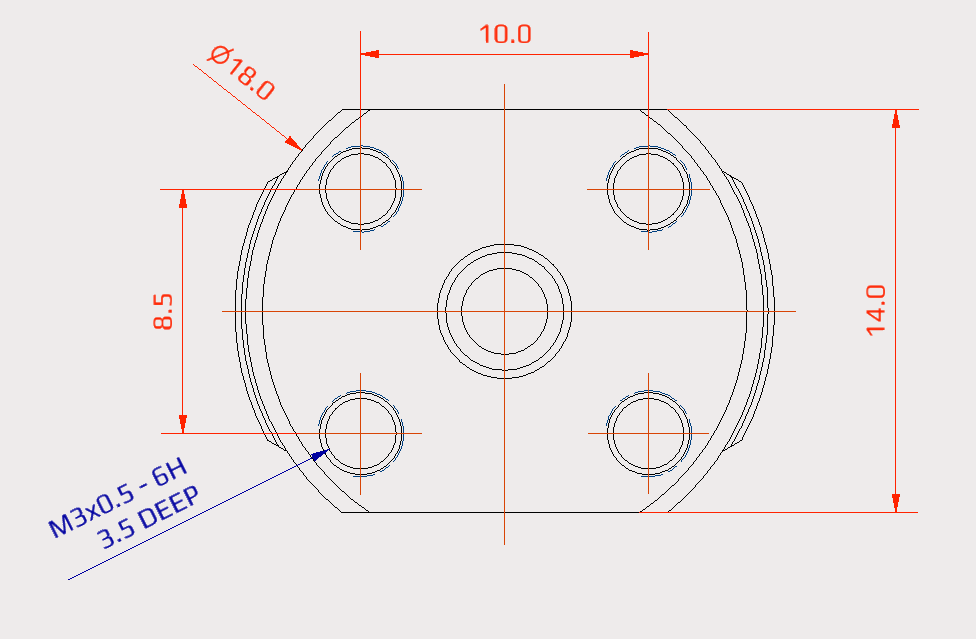

Revo Voron is intended for Voron printheads. All heatercore options are manufactured by E3D, but the "LDO version" has different cable length and terminations, intended for use with their toolhead boards but may be useful with other boards as well. Check the drawing for details.
Note that heat sink mounting hardware is not included.
Revo Voron HeatSink of your choice - PZ Probe Optional
Revo HeaterCore w/ spring & connectors (see drawing for details)
1 meter Microfit to Dupont cables (if E3D edition Heatercore is selected)
100mm length of 2mmx4mm PTFE Tubing
Your choice of nozzle kit - Details below!
Minimal kit:
- 1 x 0.40mm brass Standard Flow Revo Nozzle
Starter: - 1 x 0.40, 0.60 brass Standard Flow Revo Nozzles
Fully loaded nozzle kit: - 1 x 0.25, 0.40, 0.60, and 0.80mm brass Standard Flow Revo Nozzles
High flow kit: - 1 x 0.40mm brass Standard Flow Revo Nozzle - 1 x 0.40mm brass High Flow Revo Nozzle - 1 x 0.60mm brass High Flow Revo Nozzle
High flow X kit: - 1 x 0.40mm brass Standard Flow Revo Nozzle - 1 x 0.40mm ObXidian High Flow Revo Nozzle - 1 x 0.60mm ObXidian High Flow Revo Nozzle
High flow X kit: - 1 x 0.40mm brass Standard Flow Revo Nozzle - 1 x 0.40mm ObXidian High Flow Revo Nozzle - 1 x 0.60mm ObXidian High Flow Revo Nozzle
Genius kit: - 1 x 0.25mm brass Standard Flow Revo Nozzle - 1 x 0.40mm brass non-planar/belt Revo Nozzle - 1 x 0.40mm ObXidian Revo Nozzle - 1 x 0.60mm ObXidian High Flow Revo Nozzle - 1 x 0.60mm High Temperature Abrasive Revo Nozzle
Genius metal kit: - 1 x 0.25mm brass Standard Flow Revo Nozzle - 1 x 0.40mm brass non-planar/belt Revo Nozzle - 1 x 0.40mm ObXidian Revo Nozzle - 1 x 0.60mm ObXidian High Flow Revo Nozzle - 1 x 0.60mm High Temperature Abrasive Revo Nozzle - 1 x 0.4mm Diamondback nozzle
FAQs:
Which heatercore do I need? -> 99%+ of Vorons are 24v. All heatercores are made by E3D, but the LDO edition comes with different cable lengths/terminations. See drawing for details. As far as 40w vs 60w, for most use cases, even high flow, 40w is plenty. Unless you have at least 2 of these 3: [extreme part cooling, in excess of 40mm3/s, printing in excess of 275degC], you will not benefit from a 60w heatercore.
Which nozzles do I need? -> Revo HF increases flow rates by roughly 70% as compared to standard flow. Check out the graph here for more information.
