Important notice

Use the LGX® Lite only with a 36mm Round stepper motor featuring a 10 teeth motor gear like this:

Otherwise you may cause damages in the extruder that are NOT covered by warranty.

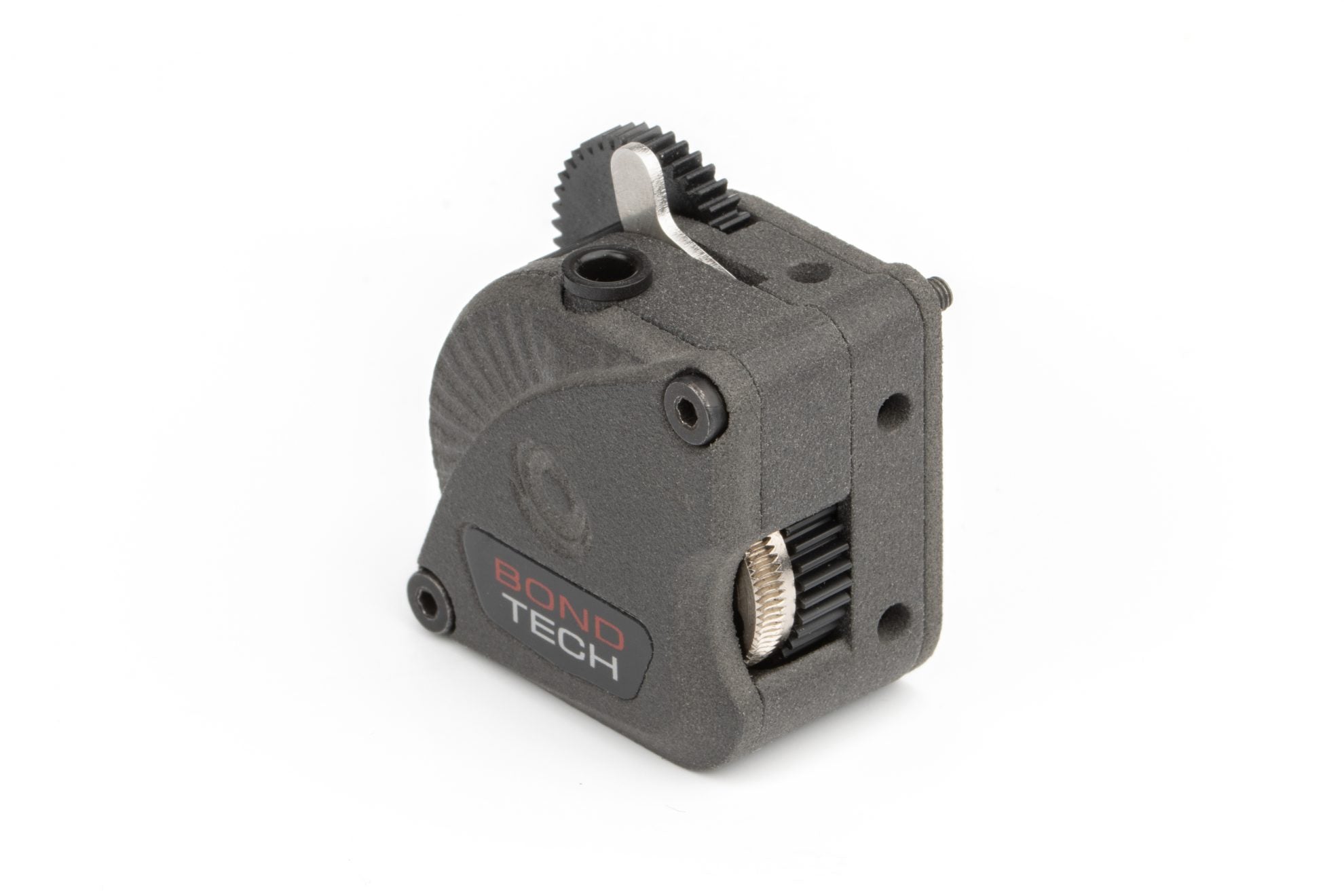

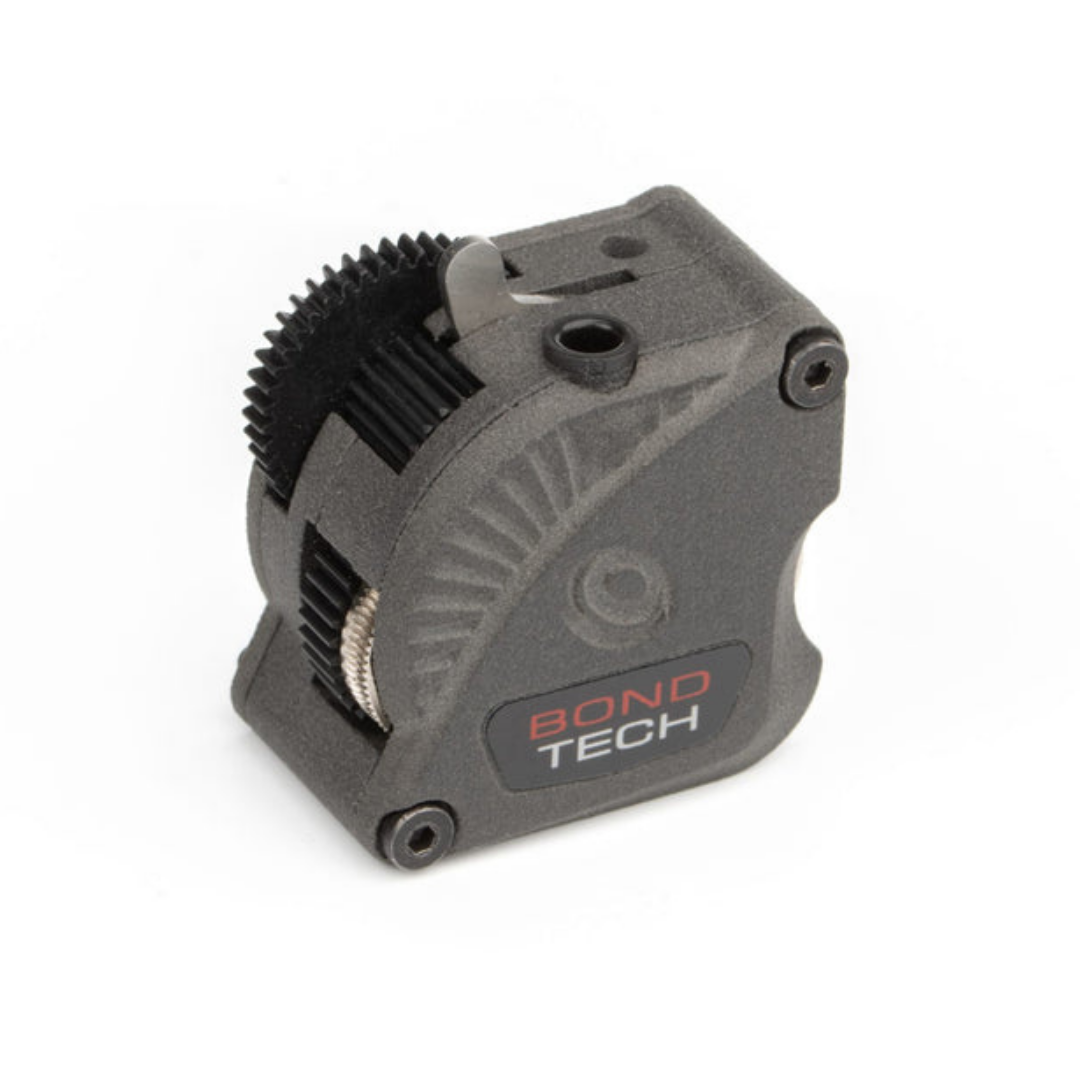

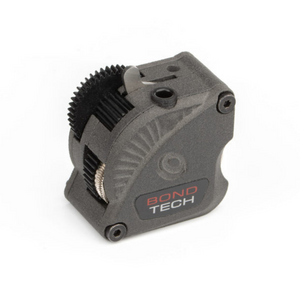

The Bondtech LGX

Each LGX® Lite extruder is supplied with:

• 1x LGX® Lite feeder;
• 1x LDO Nema14 Round 20mm pancake stepper motor;
• 1m long lead cable
• with JST-XH 4-pin connector
• 1x 2mm Hex Key (recommended tool);
• 1x Powered By Bondtech sticker.

Also shipping with additional accessories:

• 1x Push-fit collar
• 1x 30mm PTFE tube to use in the PTFE Tube Adapter.

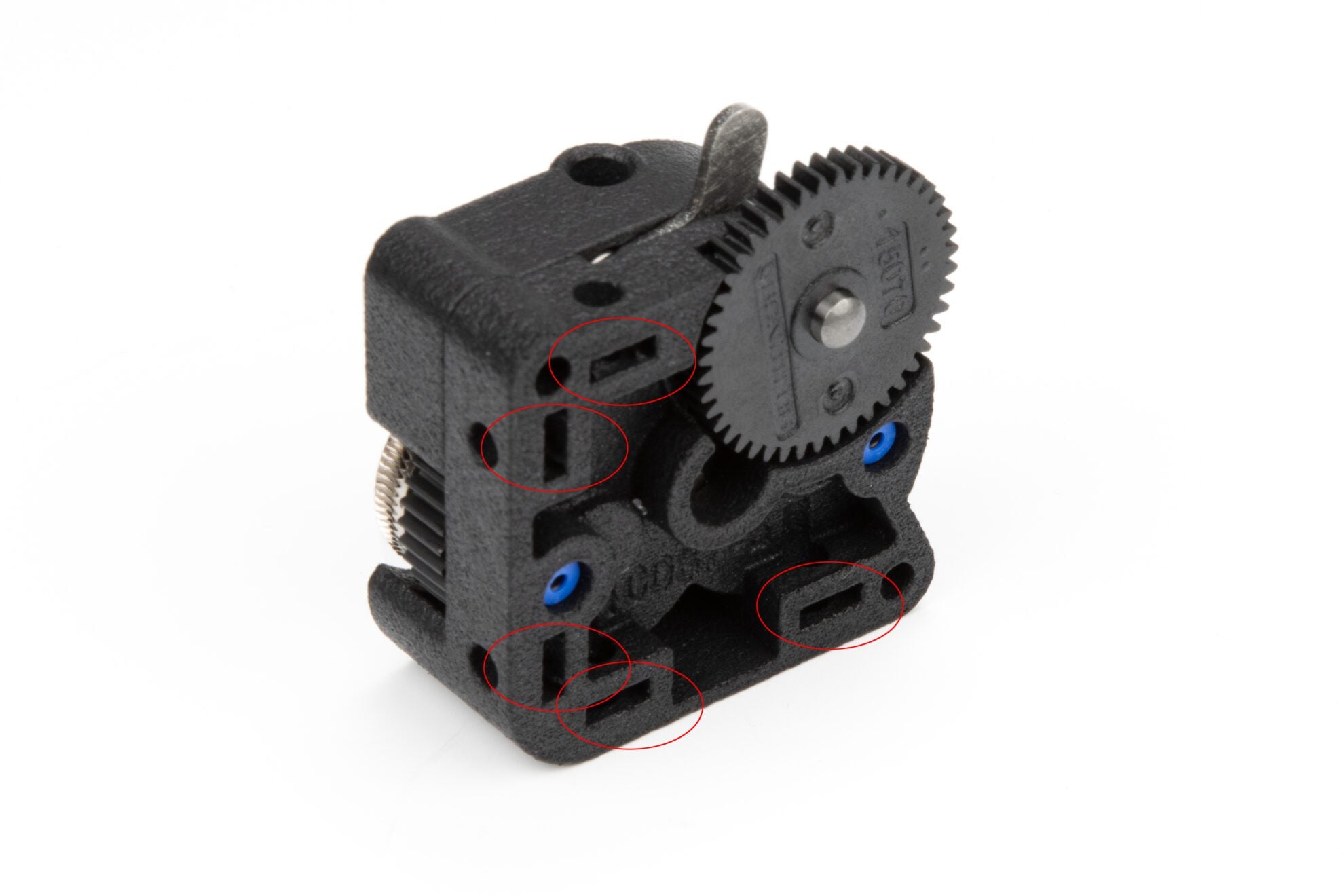

• 8x M3 square nuts for reinforcing mounting holes.

8 features of this Bondtech eXtruder:

• Larger drive wheels, for increased filament grip;
• Filament pre-tension lever, for repeated results;

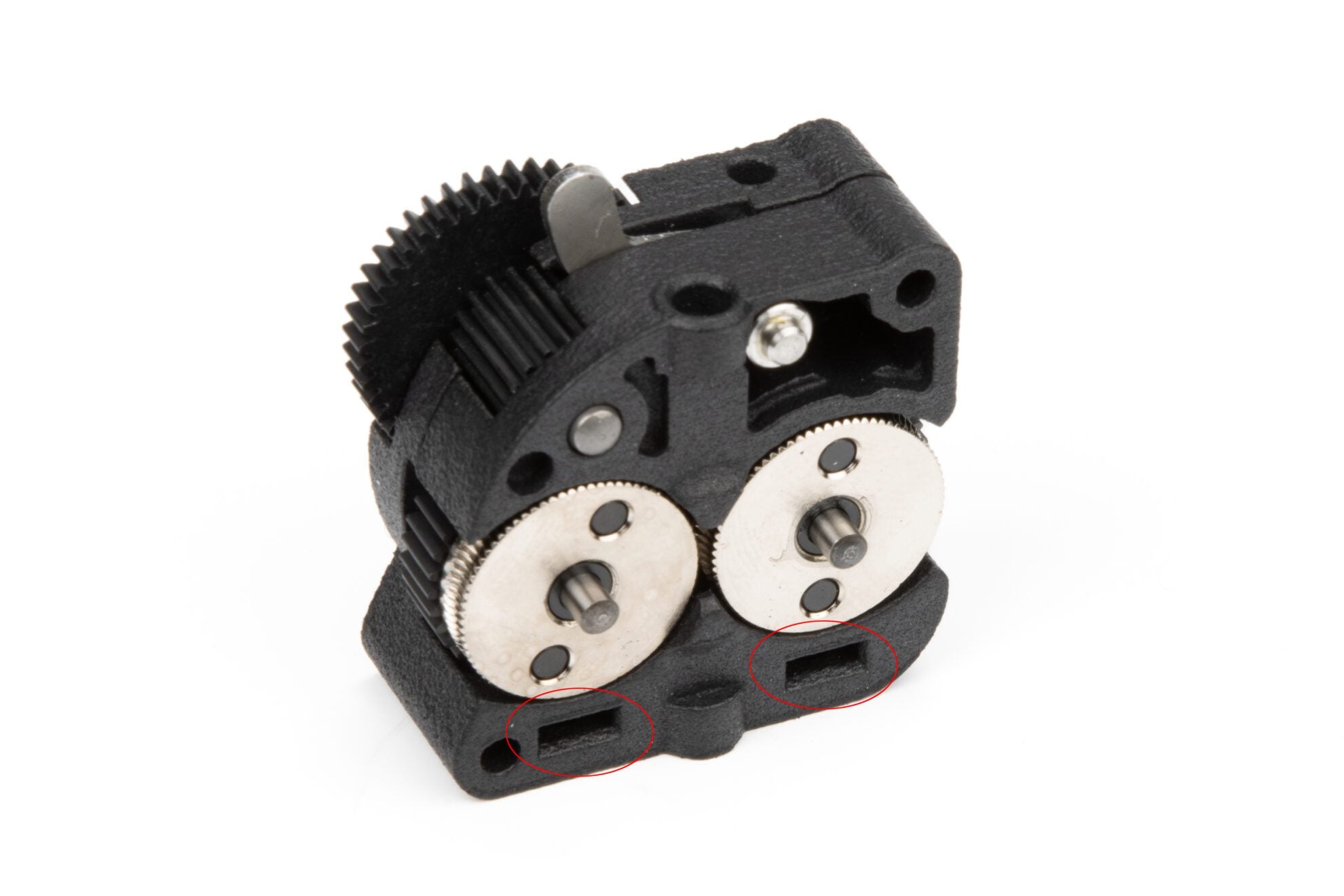

• Drive wheels’ maintenance windows, for easy cleaning;
• Compact, light & centered filament path, for increased performance and compatibility;
• Multiple mounting hole patterns, for easy and flexible setup;

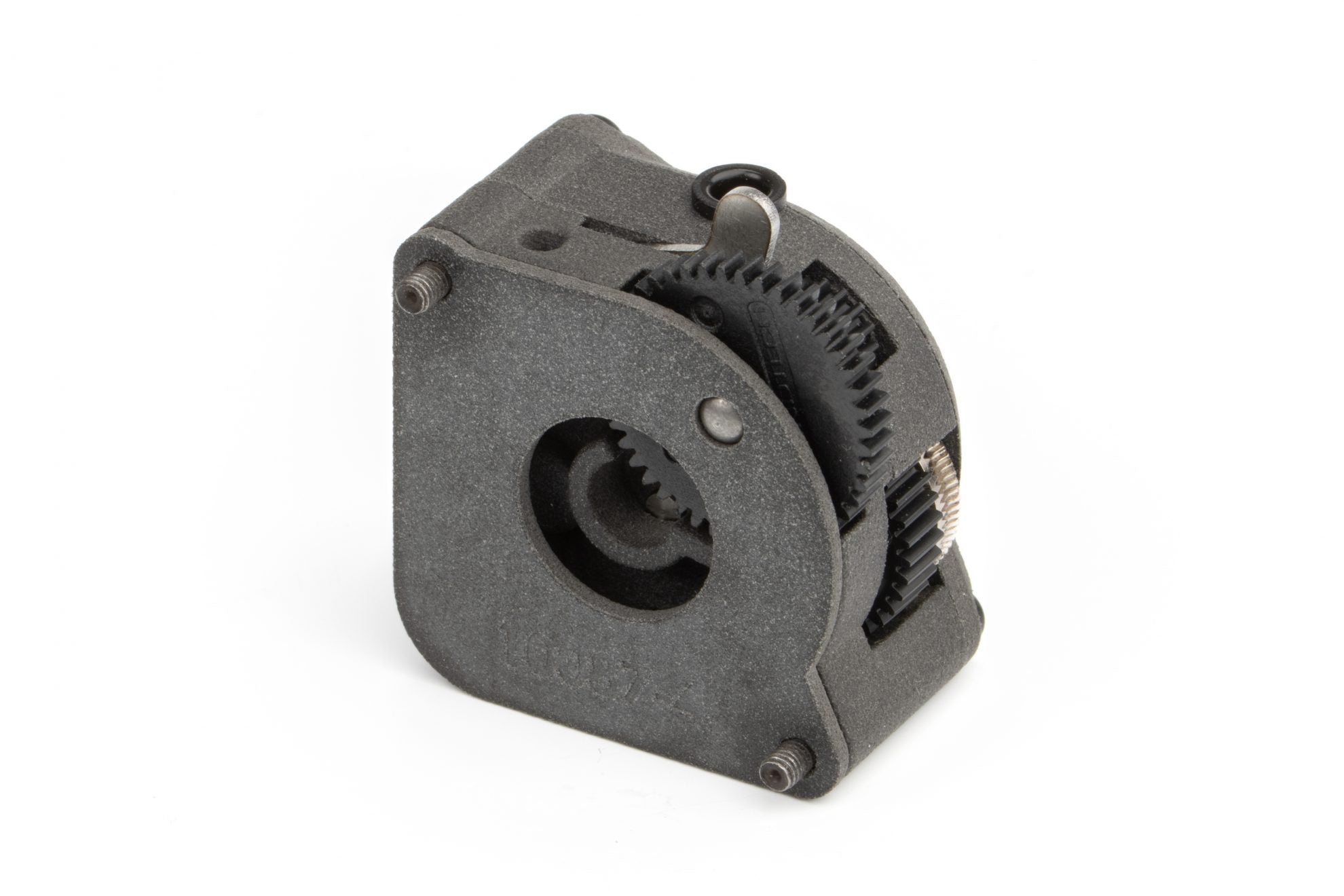

• Compatible with Nema14 round stepper motors;
• Craft boxes without bleaching & no coating.
• Nylon housing with no dyeing or other chemical post-processing.

3D Printed Housing using PA12

The housing parts are professionally printed with polyamide 12 for maximum strength, precision, and higher temperature resistance.

USING A PLATE BETWEEN THE EXTRUDER AND THE STEPPER MOTOR

• Max thickness : 2.6 mm
• Optimal Thickness : between 0.3 and 2.3 mm;

Optimal Thickness allows full teeth engagement between the motor gear and the main double gear.
